Alignment Adjustment Settings
287
Appendix
8

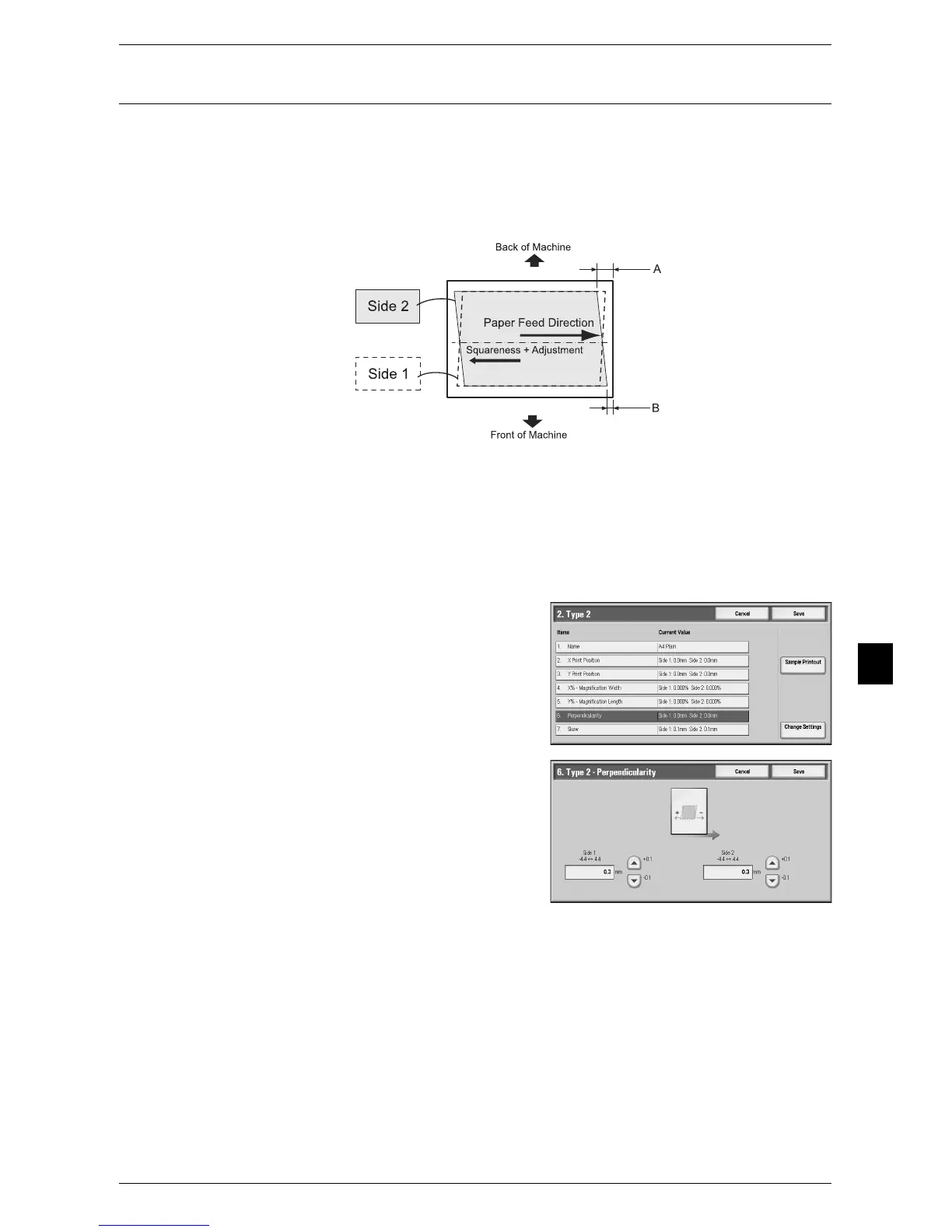

Perpendicularity Adjustment
Adjust image skewing (squareness) in 0.1 mm increments for each of sides 1 and 2.
Specify a positive value when you want to adjust the position of the image in the
opposite direction to the paper feed direction, and a negative value when you want to
adjust the image in the paper feed direction.
1 Check the sample printout, and measure the squareness offset amount that occurred.
Use the following equation to obtain the squareness offset amount, with "A" as the
length of the lead registration on the back of the machine, and "B" as the length of the
lead registration on the front of the machine.
Squareness offset amount = (A - B) × 400 ÷ (length of Y direction of paper - 20 mm)
For example:
When A3 is placed horizontally: (A - B) × 400 ÷ 277
2 Select [Perpendicularity], and press [Change
Settings].
3 Enter a value with the squareness offset
amount measured in Step 1 added as the
current setting value of [Side 1] and [Side 2].
Note • The range of values that can be entered, displayed above the entry field, may vary
depending on the settings of the machine.
If image skewing (squareness) cannot be adjusted adequately even when you have entered
the maximum or minimum value for Side 1, adjust image skewing (squareness) for Side 2.
