Skew Adjustment
Adjust image skewing (tilt extent) in 0.1 mm increments for each of sides 1 and 2.
Place the document so that the paper feed direction is on your right. Specify a positive
value to tilt the image counterclockwise, and specify a negative value to tilt the image
clockwise.

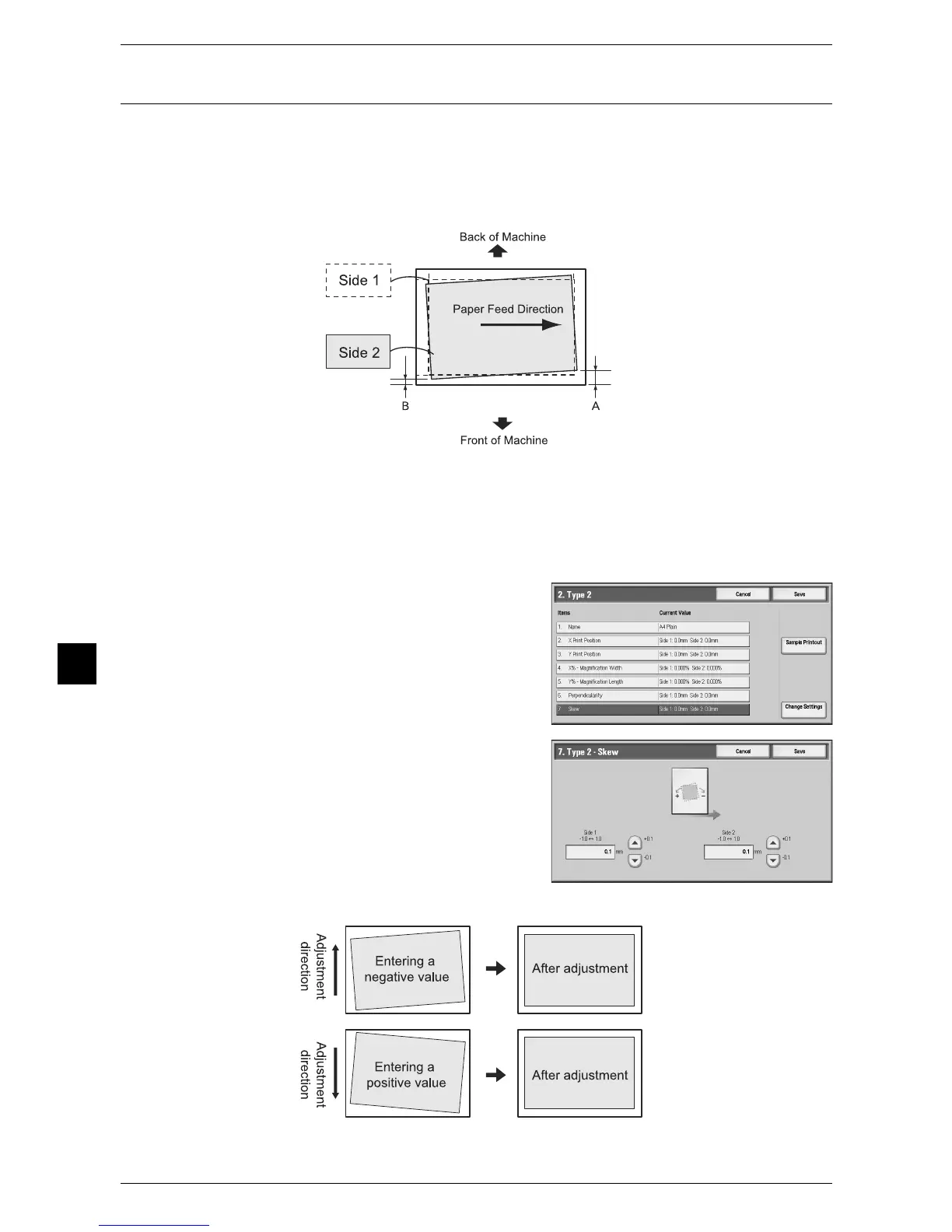

1 Check the sample printout, and measure the squareness offset amount that occurred.
Use the following equation to obtain the tilt extent amount, with "A" as the length of the
leading registration edge of the output sample, and "B" as the length of the trailing
registration edge of the output sample.
Skew amount = A - B
2 Select [Skew], and press [Change Settings].
3 Enter a value with the tilt extent amount
measured in Step 1 added as the current
setting value of [Side 1] and [Side 2].
Note • Entering a positive or negative value adjusts the tilt extent as shown below.
4 Press [Save].
