Paper Jams Inside the Finisher Right Cover (For Finisher D4 or Finisher
D4 with Booklet Maker)
This section describes how to clear paper jams occurring inside the Finisher Right
Cover of Finisher D4 (optional) or the Finisher D4 with Booklet Maker (optional).
The following shows the reference section for the procedures to clear a paper jam in
each location.
Paper Jams at Levers 3b and 3d................................................................................................246
Paper Jams at Lever 3e and Knob 3c ........................................................................................247
Paper Jams at Lever 3g and Knob 3f ........................................................................................247
Paper Jams at Lever 4b and Knob 3a........................................................................................248
Note • Remedies will differ depending on where the paper jam occurs. Therefore, be sure to follow
the instructions displayed to remove the jammed paper.
Paper Jams at Levers 3b and 3d

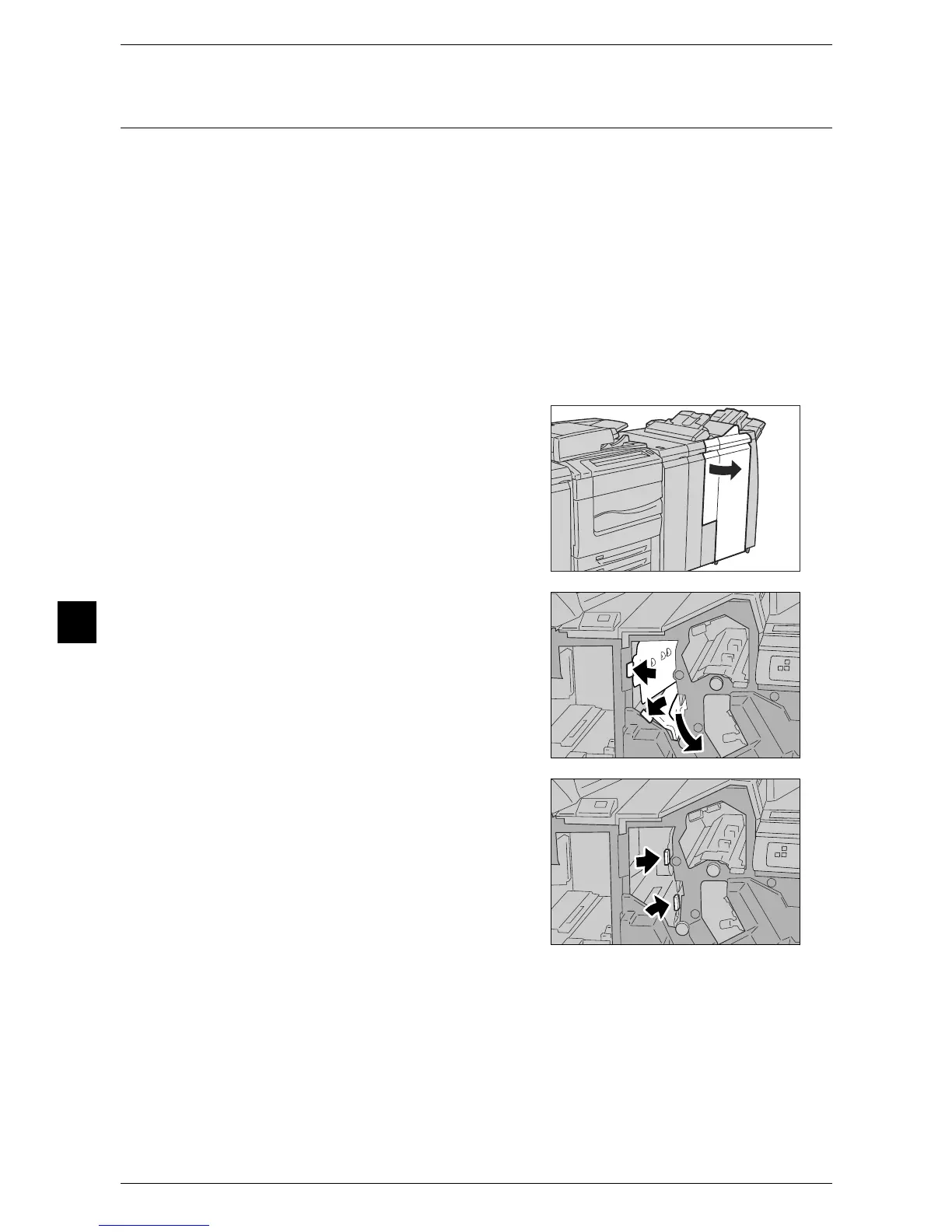

1 Make sure that the machine is not operating,
and open the right cover of the finisher.
2 Move levers 3b and 3d, and remove the
jammed paper.
Note • If the paper is torn, make sure no piece of
paper remains inside the machine.
3 Return levers 3b and 3d to their original
positions.
4 Close the finisher right cover.
Note • A message will be displayed and the machine will not operate if the right cover of the finisher
is even slightly open.
