Note • The reference lengths for a sample printout of A3 or A4 size printed with [Sample Printout]
are as follows.

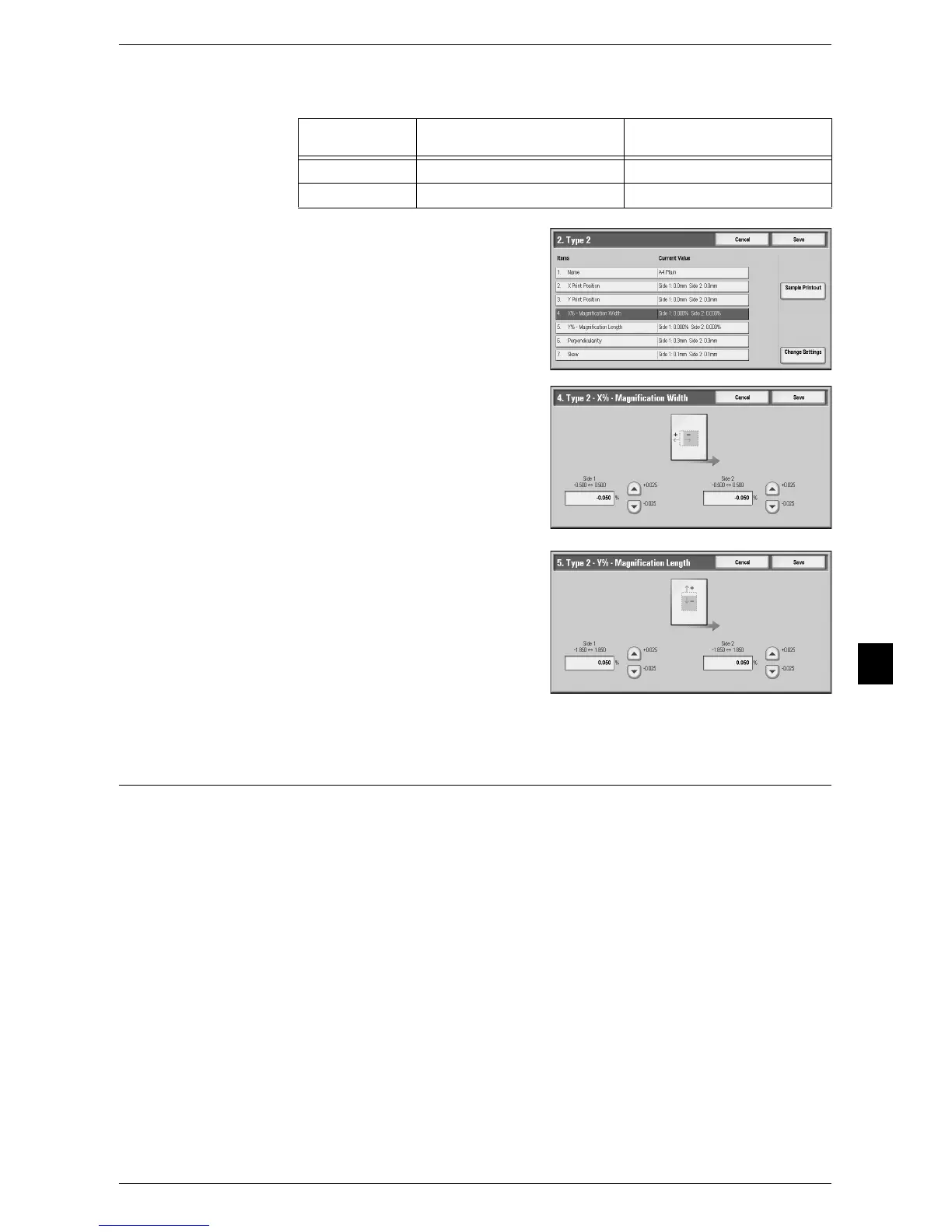

2 Select [X%-Magnification Width] or [Y%-
Magnification Length], and press [Change
Settings].
3 Enter a value with the X direction scale
correction amount you measured in Step 1
added for the current setting value of [Side 1]
and [Side 2] of [X%].
Enter a value with the Y direction scale
correction amount you measured in Step 1
added for the current setting value of [Side 1]
and [Side 2] of [Y%].
Note • The range of values that can be entered,
displayed above the entry field, may vary
depending on the settings of the machine.
If the size (scale) of the image cannot be
adjusted adequately even when you have
entered the maximum or minimum value
for Side 1, adjust the size (scale) for Side
2.
4 Press [Save].
Print Position Adjustment
Adjust the position of the image in the paper feed direction and the vertical direction in
relation to the paper feed direction in 0.1 mm increments for each of sides 1 and 2.
Adjust the position in the paper feed direction with [X Print Position], and adjust the
position in the vertical direction in relation to the paper feed direction with [Y Print
Position].
Paper Size
Image Reference Length in X
Direction
Image Reference Length in Y
Direction
A3 400 mm 277 mm
A4 190 mm 277 mm
