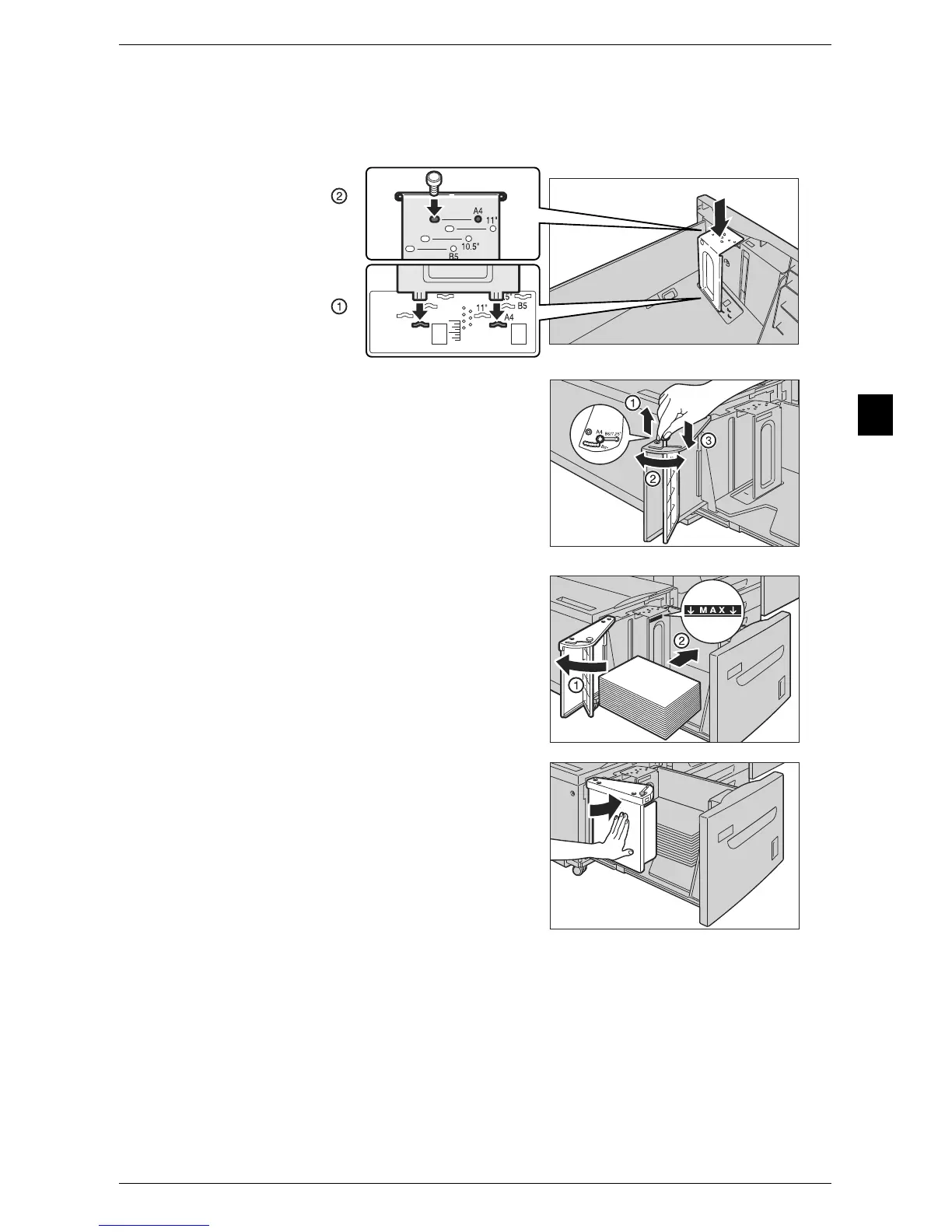

Changing the Paper Size
45
Paper and Other Media
2
6 Insert the small protrusions at the bottom of the guide into the holes corresponding to
the paper size (1). Then insert the screw into a hole corresponding to the paper size
on the top of the guide and tighten the screw (2).
7 Pull up on the end guide lever (1) as shown
in the illustration. Move the guide to the
desired paper size (2) and then press down
on the lever (3).
Important • Set the guide to gently touch the edge of
the paper. If the position of the guide is
not correct, the paper may not be fed
properly and may cause paper jams.
Note • The slot on the left of 8.5 on the end guide
is not used.
8 Open the end guide (1). Load and align the
edge of the paper against the right edge of
the tray, with the side to be copied or printed
on facing up (2).
Note • Do not load paper above the maximum fill
line ("MAX" in the illustration). It may
cause paper jams or machine
malfunctions.
9 Close the end guide tightly.
10 Push the tray in gently until it comes to a stop.
Important • When inserting the tray, push it gently. Forcibly pushing in the tray may cause machine
malfunction.
