TX1310 M3 Upgrade and Maintenance Manual 105
8.3.3 Installing the new front fan

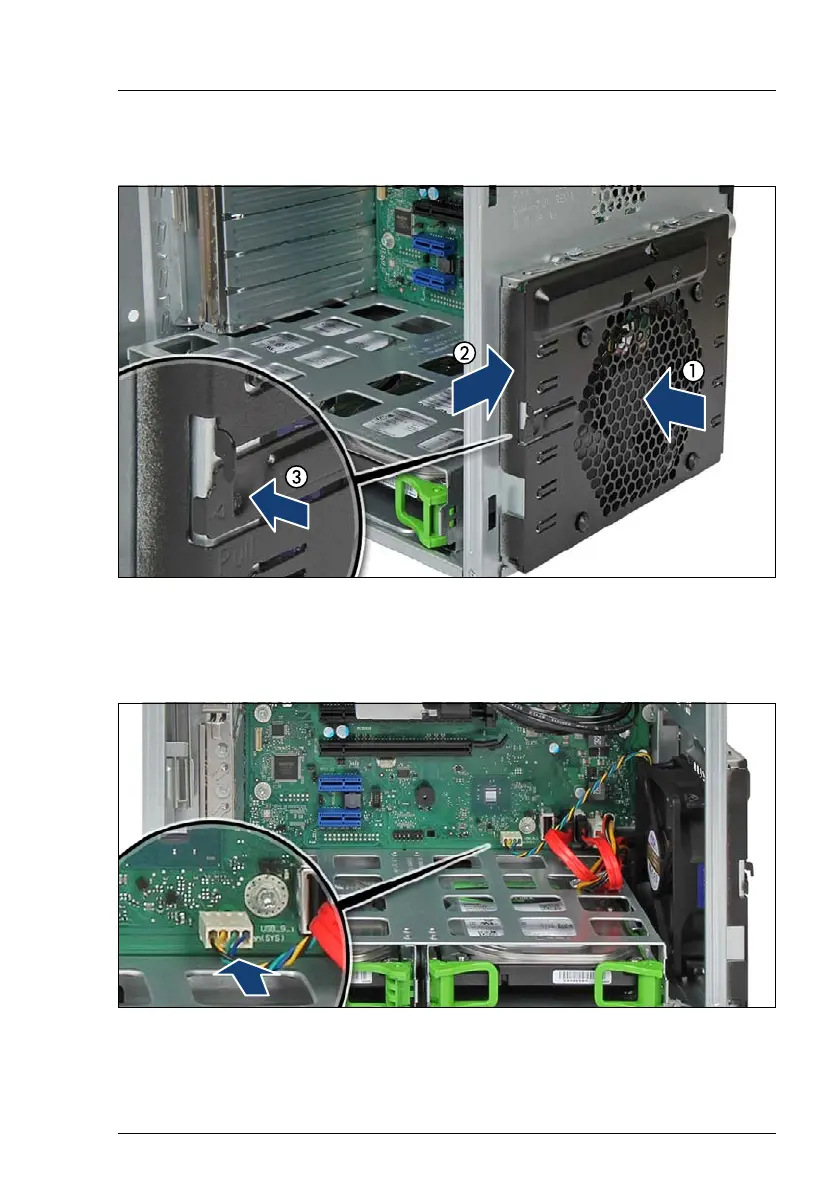

Figure 49: Installing the front fan cage
Ê Slightly offset to the left, fit the front fan cage on the server front (1).
Ê Push the fan cage to the right (2) until the locking latch (3) engages.
Figure 50: Connecting the rear fan cable
Ê Connect the front fan cable to system board connector "Fan (SYS)".
