Fujitsu PRIMERGY TX1310 M3

TX1310 M3 Upgrade and Maintenance Manual 167
Accessible drives
12.3.1.3 Preparing the backup drive
I There are two fixation plates for accessible backup drives. You need one
fixation plate for every accessible backup drive to be installed.

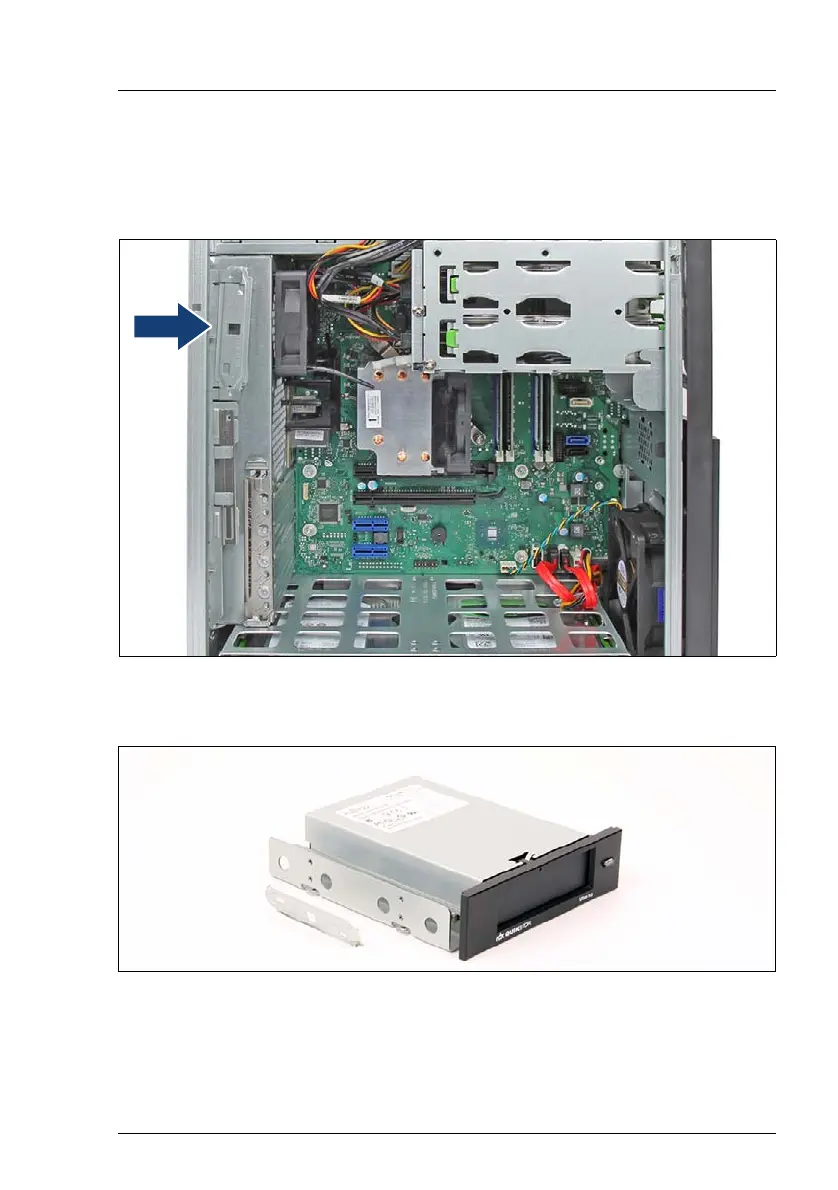

Figure 100: Removing the fixation plate from the chassis
Ê Unclip the fixation plate (see arrow).
Figure 101: Attaching the fixation plate to the backup drive
Ê Align the four pins on the fixation plate with the screw holes in the backup
drive.
Ê Attach the fixation plate on the left side of the backup drive.
