15.3.1 Installing the TPM
15.3.1.1 Preliminary steps
Ê "Shutting down the server" on page 44
Ê "Disconnecting the power cord" on page 45
Ê "Getting access to the component" on page 46
Ê Remove all expansion cards, see section "Removing expansion cards" on
page 116.
I Before removing the expansion cards, take a note on the installation
slot number for each card. Make sure that you reinstall the card in the
slot it was located before the replacement.
15.3.1.2 Installing the TPM

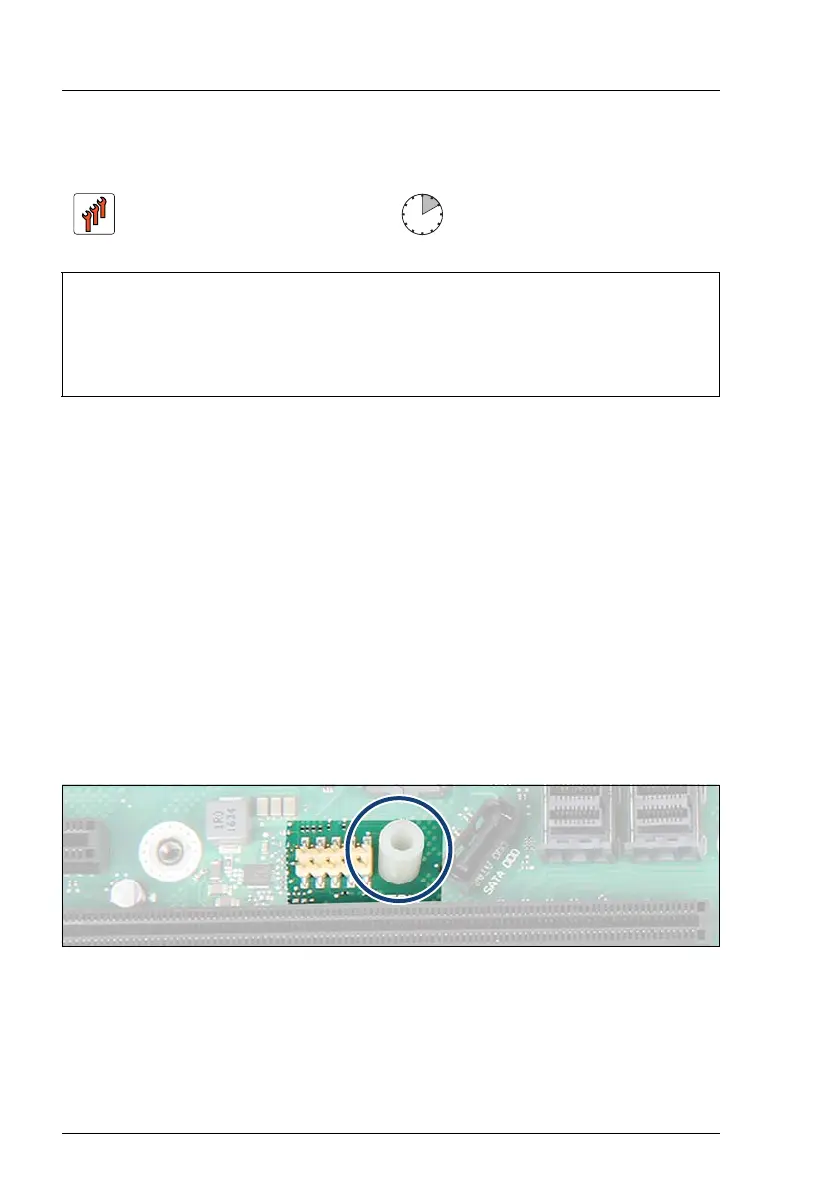

Figure 114: Inserting the TPM spacer on the system board
Ê Insert the TPM spacer into the hole on the system board.
Field Replaceable Unit
(FRU)
Hardware: 5 minutes
Software: 5 minutes
Tools: – Bit screw driver
– TPM bit insert
(
*
)
(
*
)
For Japan
– TPM module fixing tool (S26361-F3552-L909)
