TX1310 M3 Upgrade and Maintenance Manual 179

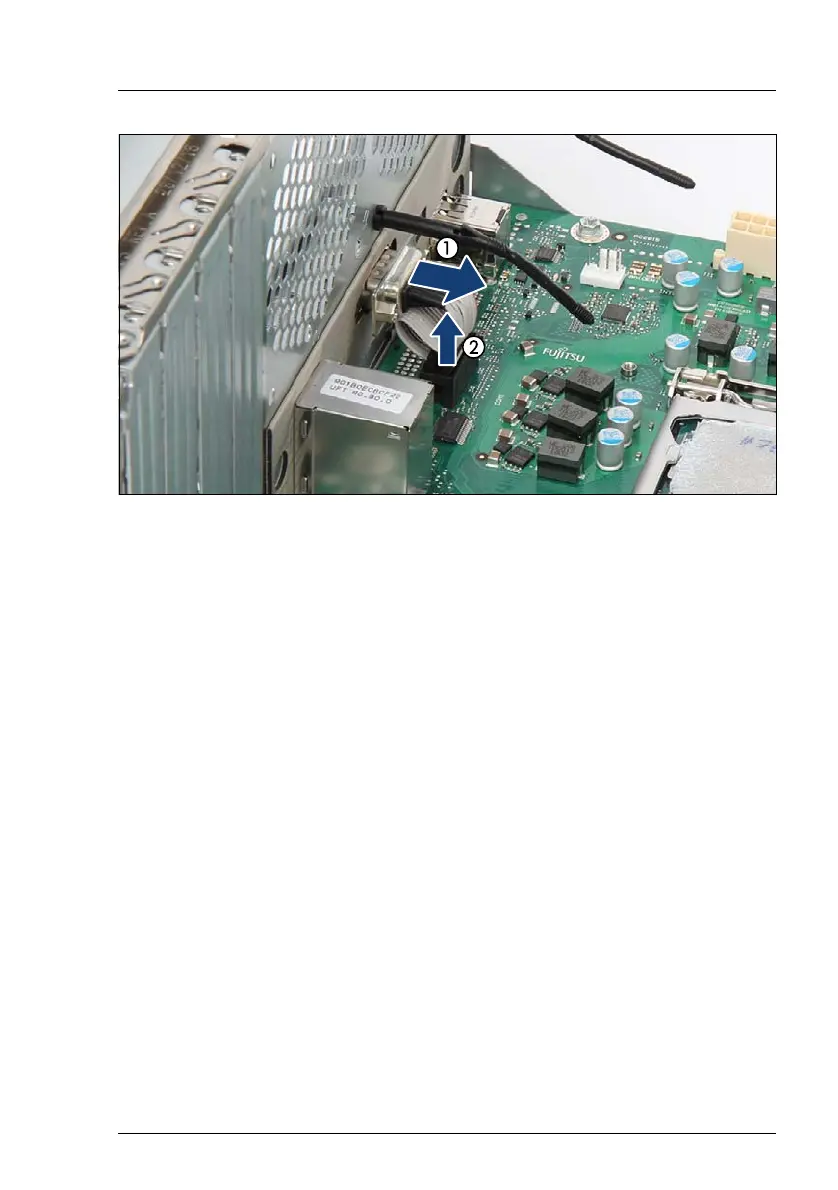

Figure 110: Removing the serial connector (B)
Ê Remove the serial connector (1).
Ê Remove the cable from the system board (2).
14.2.3 Concluding steps
Ê "Installing the air deflector" on page 59
Ê "Reassembling" on page 51
Ê "Connecting the power cord" on page 56
Ê "Switching on the server" on page 57
