Fujitsu PRIMERGY TX1310 M3

158 Upgrade and Maintenance Manual TX1310 M3
Accessible drives
12.2.1.3 Preparing the ODD
I There are two fixation plates for accessible drives. You need one fixation
plate for every accessible drive to be installed.

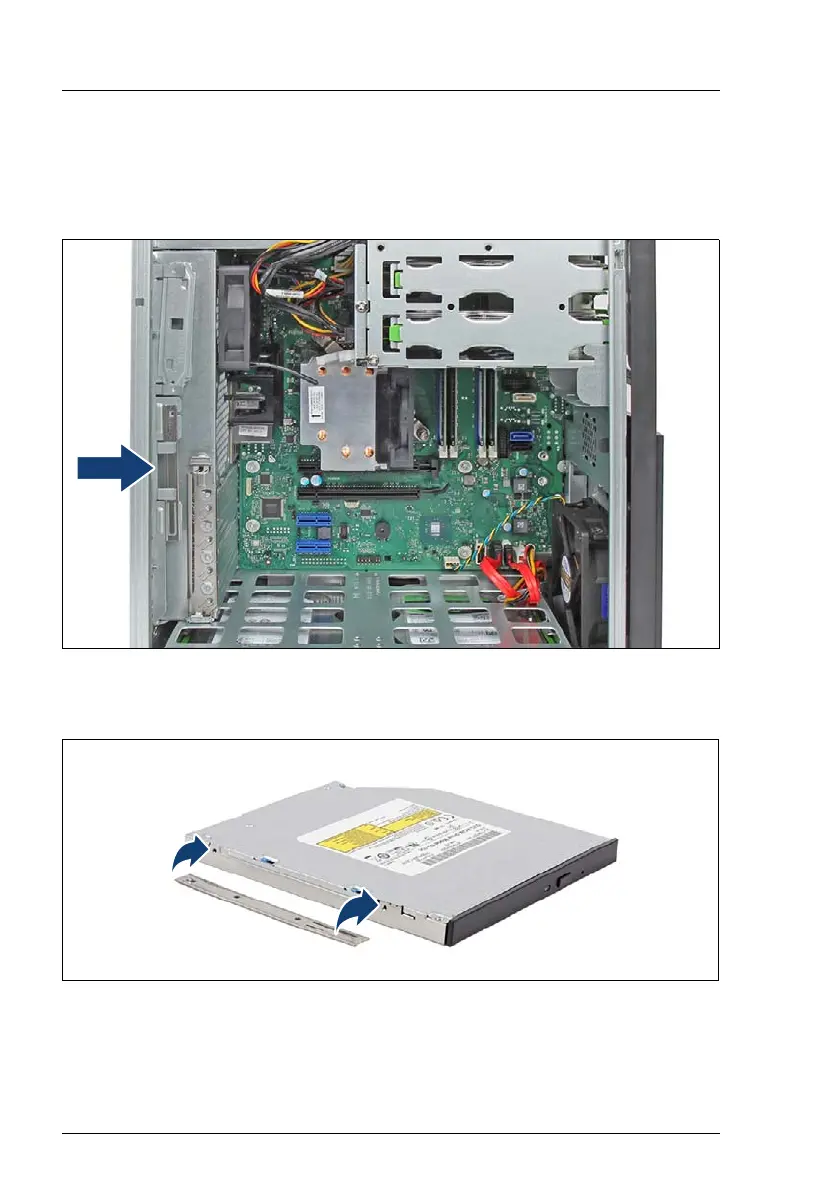

Figure 90: Removing the fixation plate from the chassis
Ê Unclip the fixation plate (see arrow).
Figure 91: Attaching the fixation plate to the ODD
Ê Align the two pins on the fixation plate with the screw holes in the ODD.
Ê Attach the fixation plate to the left side of the ODD.
