58 Upgrade and Maintenance Manual TX1310 M3
Basic hardware procedures
4.8 Handling air deflector
4.8.1 Removing the air deflector

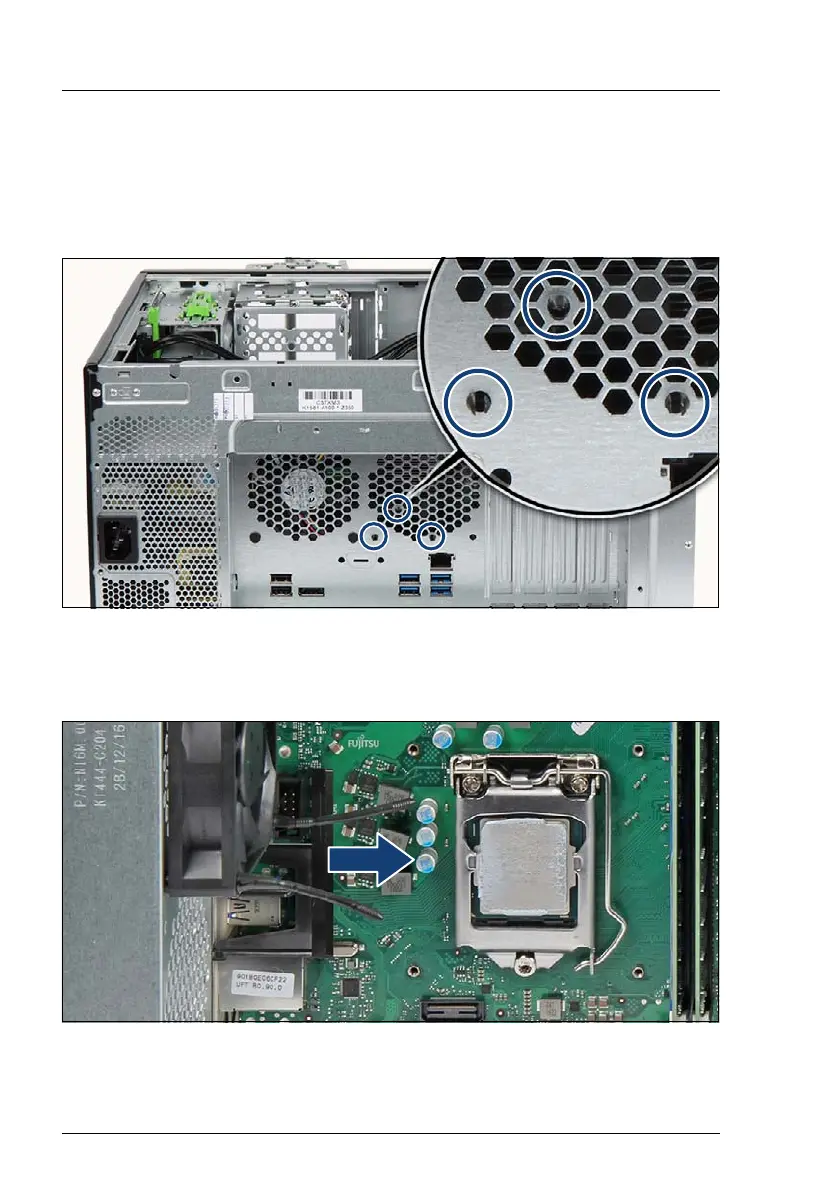

Figure 18: Removing the air deflector (A)
Ê Press in the three expanding rivets on the server rear as shown (see close-
up).
Figure 19: Removing the air deflector (B)
Ê Carefully remove the air deflector.
