Serial connector
14.1.2 Breaking off the metal cover

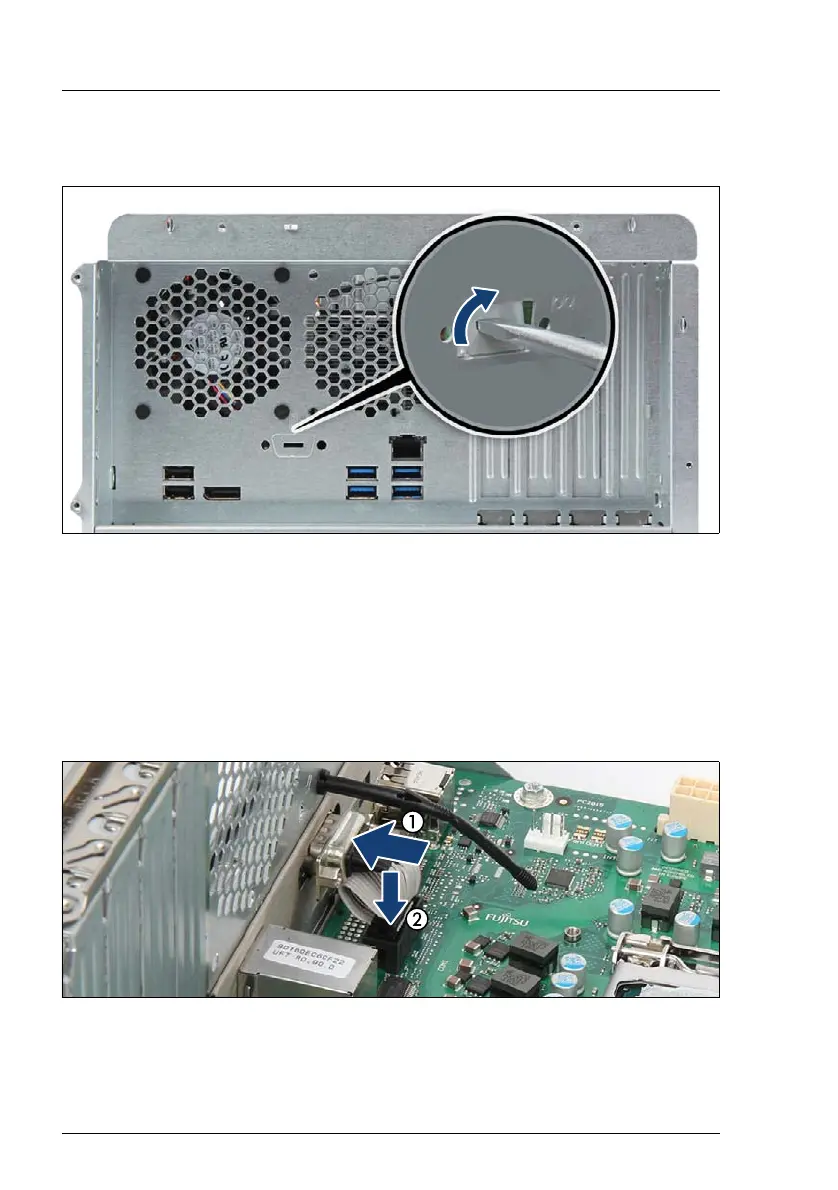

Figure 106: Removing the serial connector metal cover
Ê Twist and break off the metal cover. Use a flat screw driver to break off the
metal cover.
14.1.3 Installing the serial connector
Ê Remove the two hexagon bolts from the serial connector.
Figure 107: Installing the serial connector (A)
Ê Insert the serial connector into the slot cover (1).
Ê Connect the cable to the system board "COM1" (2).
