TX1310 M3 Upgrade and Maintenance Manual 59
Basic hardware procedures
4.8.2 Installing the air deflector

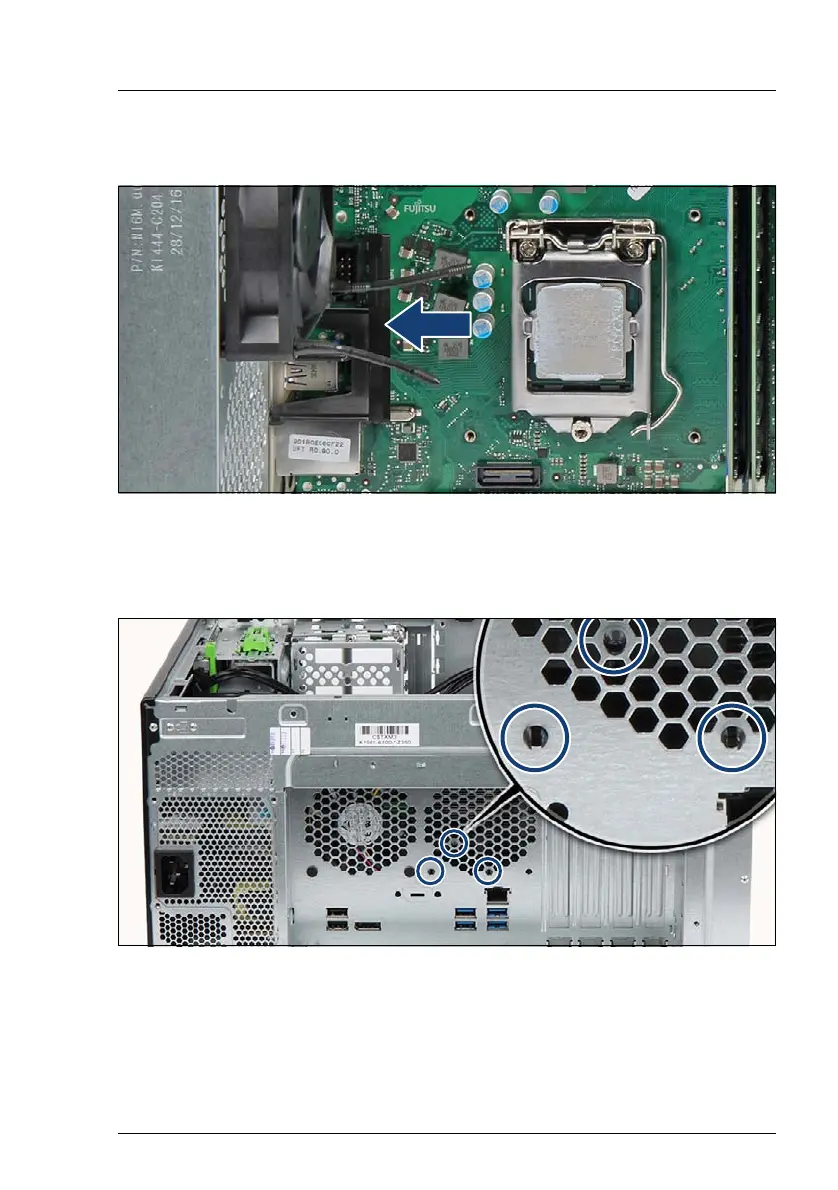

Figure 20: Installing the air deflector (A)
Ê Fit the air deflector above the connector panel as shown.
Ê Press in until the three expanding rivets on the air deflector snap into place.
Figure 21: Installing the air deflector (B)
Ê Ensure that the three expanding rivets on the air deflector are properly
engaged in the rear chassis wall (see close-up).
