162 Upgrade and Maintenance Manual TX1310 M3

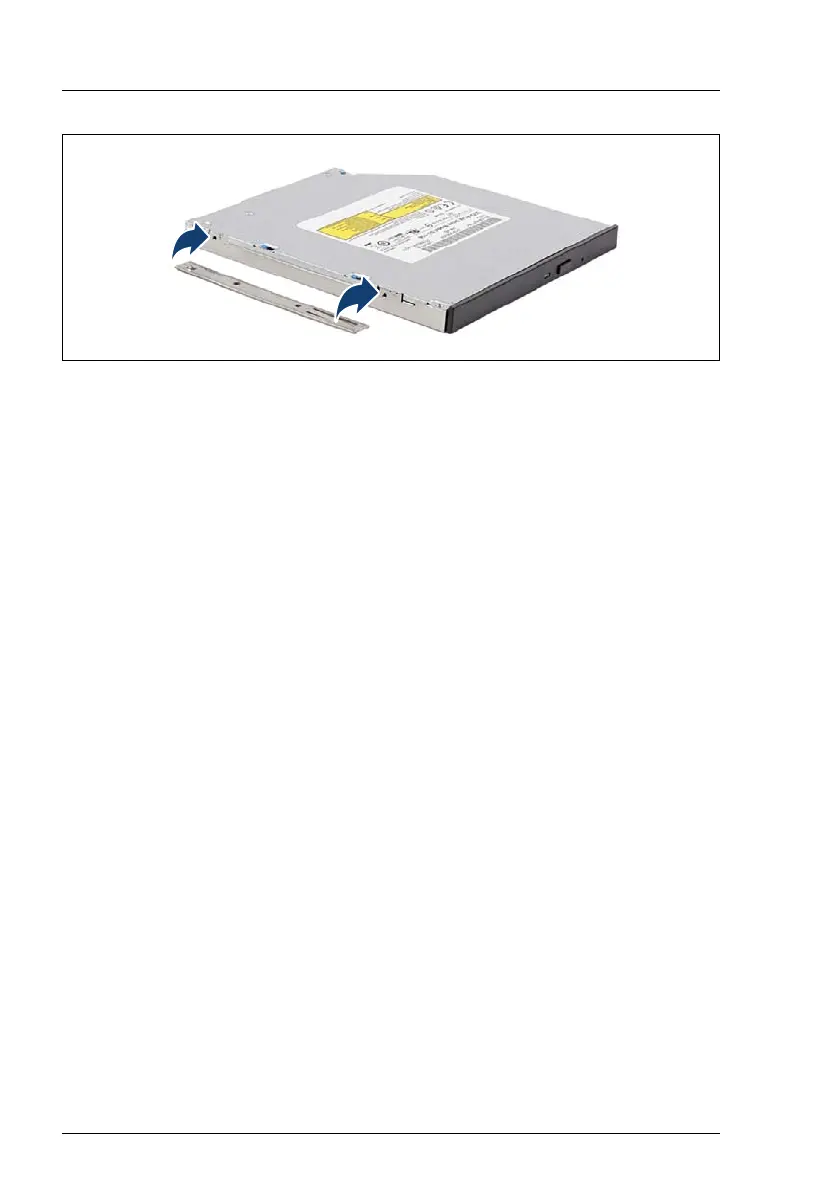

Figure 94: Attaching the fixation plate to the ODD
Ê Align the two pins on the fixation plate with the screw holes on the new ODD.
Ê Attach the fixation plate to the left side of the new ODD.
Ê Install the new ODD, see section "Installing the ODD" on page 159.
12.2.3.3 Concluding steps
Ê "Reassembling" on page 51
Ê "Connecting the power cord" on page 56
Ê "Switching on the server" on page 57
Ê "Reconfiguring the backup software solution" on page 66
Ê "Resuming BitLocker functionality" on page 70
