16.3.2 Replacing the HDD cable (bottom HDD cage)
16.3.2.1 Preliminary steps
Ê "Shutting down the server" on page 44
Ê "Disconnecting the power cord" on page 45
Ê "Getting access to the component" on page 46
16.3.2.2 Removing the defective HDD cable
Ê If applicable, remove HDD1 and HDD2, see section "Removing a 3.5-inch
HDD" on page 90.
Ê Pull the system board tray out of the chassis, see section "Removing the
system board" on page 198.

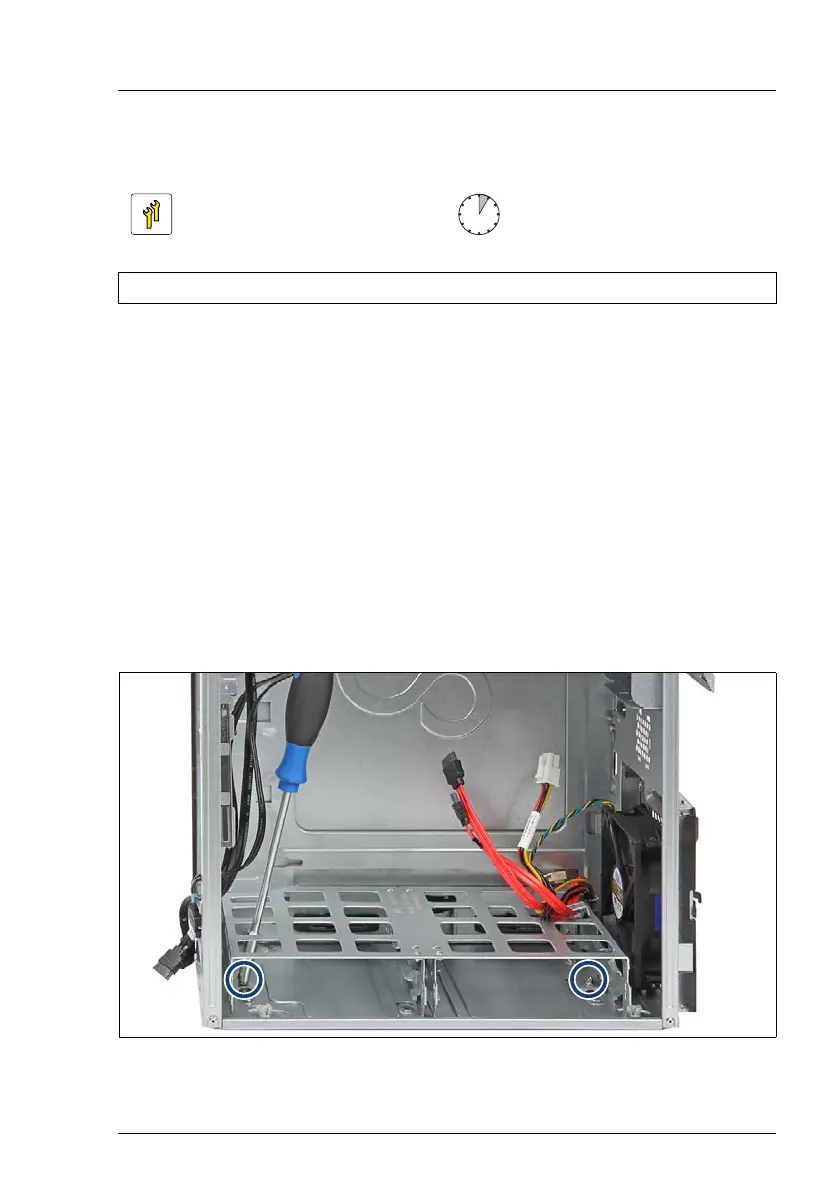

Figure 135: Removing the screws
Ê Remove the two screws (see circles).
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tool: Phillips PH2 / (+) No. 2 screw driver
To Next Page
