Fujitsu PRIMERGY TX1310 M3

218 Upgrade and Maintenance Manual TX1310 M3
Cables

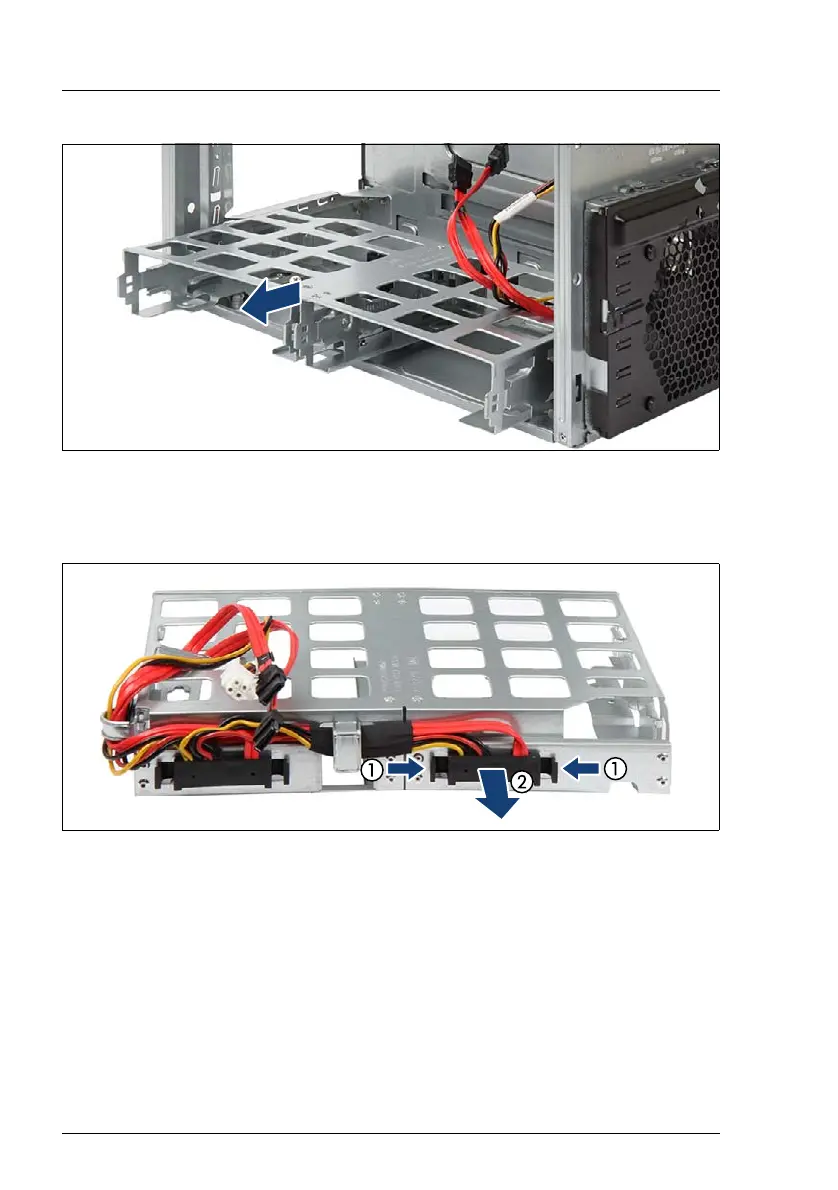

Figure 136: Removing the HDD cage bottom
Ê Pull the bottom HDD cage to the front as far as possible, lift it over the cant
and remove it.
Figure 137: Removing the defective cable
Ê Pinch the sides of the connector (1) and remove it from the bottom HDD
cage (2).
