TX1310 M3 Upgrade and Maintenance Manual 85
7.2 Installing 3.5-inch HDDs
7.2.1 Preliminary steps
Ê "Shutting down the server" on page 44
Ê "Disconnecting the power cord" on page 45
Ê "Getting access to the component" on page 46
Ê Locate the correct drive bay, see section "Mounting order" on page 84.
7.2.2 Removing Easyrail out of the upper HDD bay

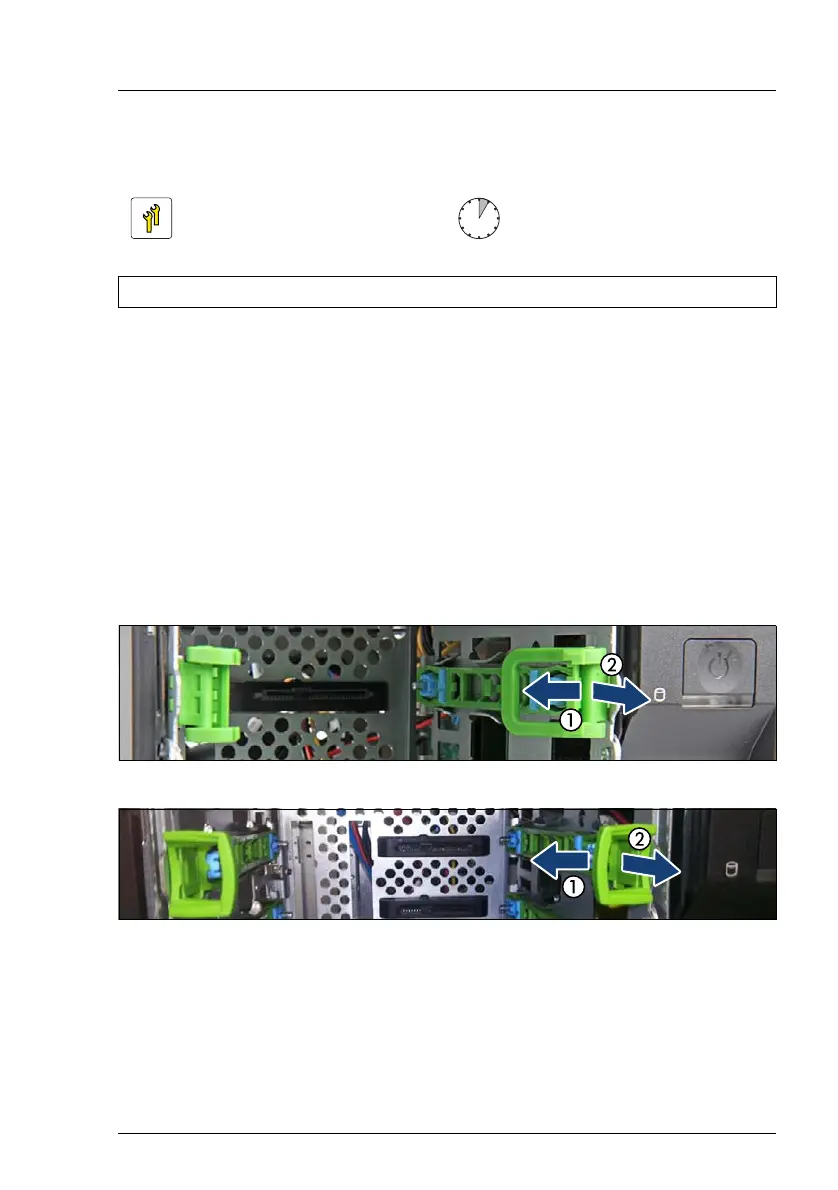

Figure 32: Removing the Easyrails out of the bay (A)
Figure 33: Removing the Easyrails out of the bay (B)
Ê Press in the green handle on the Easyrail (1) and pull the rail out of the
desired 3.5-inch HDD drive bay (2).
I Easyrails can be different (see figures).
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: tool-less
