Power supply unit (PSU)
6.2 Replacing the PSU
6.2.1 Preliminary steps
Ê "Shutting down the server" on page 44
Ê "Disconnecting the power cord" on page 45
Ê "Getting access to the component" on page 46
Ê "Extending the HDD cage out of the chassis" on page 47
6.2.2 Removing the PSU
I You are advised to perform this routine with the server in a horizontal
position.
Ê Push the backup drive somewhat to the front to get more space, see section
"Removing a backup drive" on page 169.

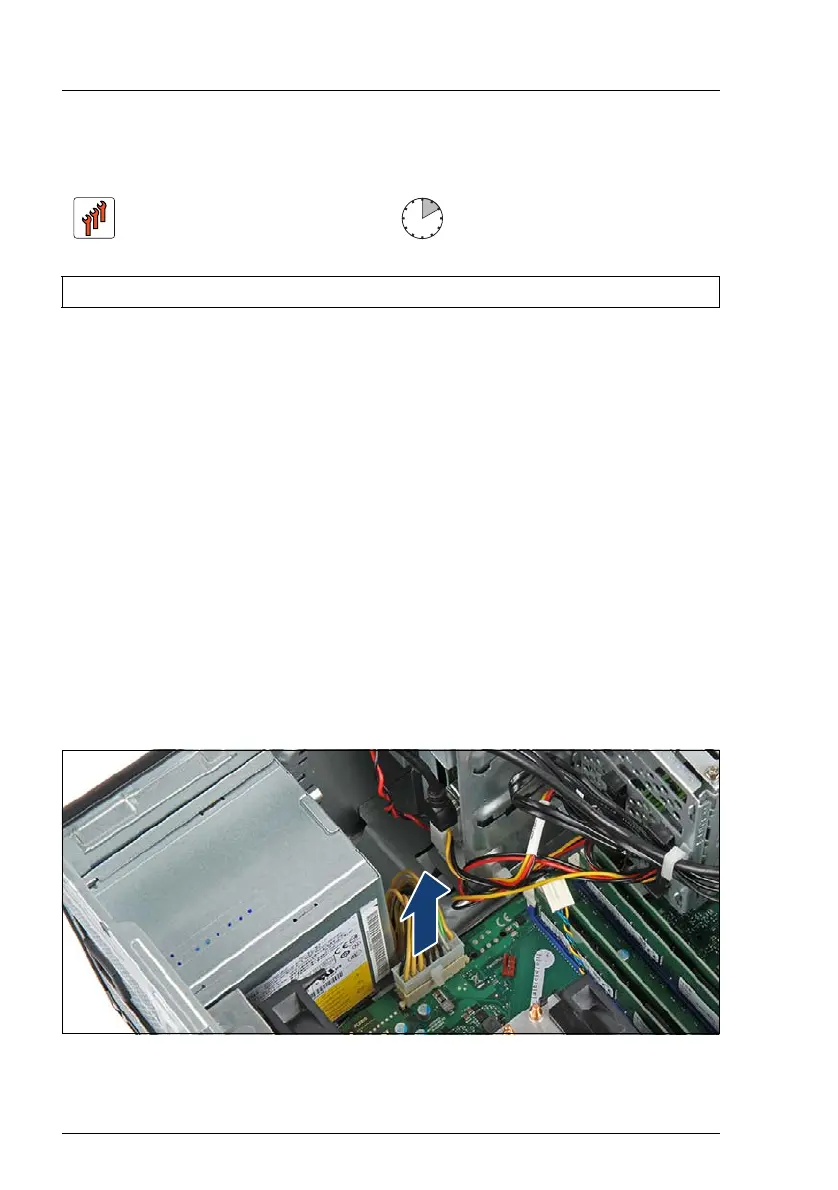

Figure 23: Disconnecting power cable
Ê Disconnect the power cable from system board connector "PWR12V".
Field Replaceable Unit
(FRU)
Hardware: 10 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
