Fujitsu PRIMERGY TX1310 M3

TX1310 M3 Upgrade and Maintenance Manual 77
Power supply unit (PSU)

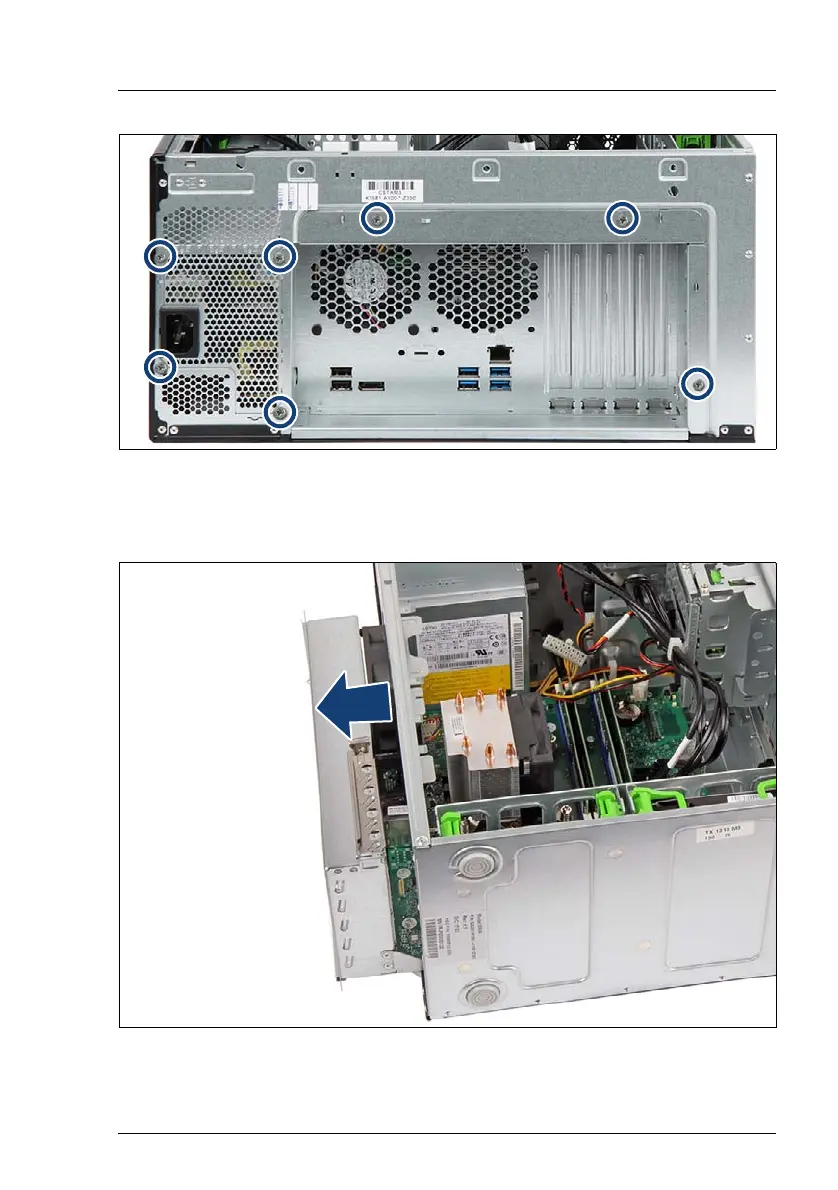

Figure 24: Removing screws
Ê Remove four screws from the PSU and three screws from the chassis (see
circles).
Figure 25: Pulling out the system board tray
Ê Pull the system board tray out of the chassis by 4-5 cm.
