TX1310 M3 Upgrade and Maintenance Manual 115
Expansion cards and backup units
9.3.1.3 Installing an expansion card
Ê Remove the expansion card from its protective packaging.
I For further instructions regarding controller settings, please refer to
the accompanying documentation.
Ê If applicable, attach the required slot bracket to the expansion card, see
section "Installing a slot bracket" on page 110.

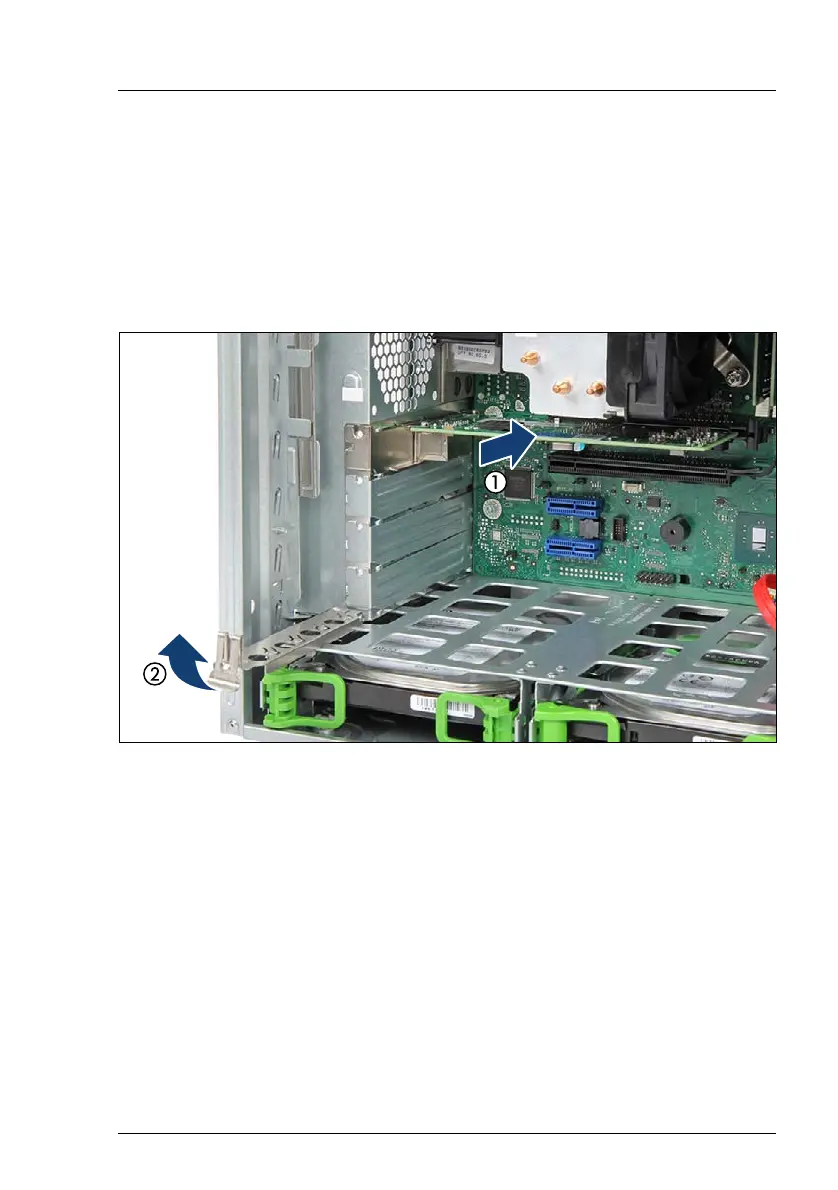

Figure 57: Installing the expansion card
Ê Carefully insert the expansion card into the desired PCI slot and press firmly
until it is fully seated in the slot (1).
Ê Close the slot bracket clamp (2).
Ê If applicable, connect internal cables to the expansion card (see section
"Cabling plans" on page 206).
