TX1310 M3 Upgrade and Maintenance Manual 91
7.3.3 Inserting Easyrails in the upper HDD bay
I Store unused Easyrails inside their drive bays to have them at hand if
needed.

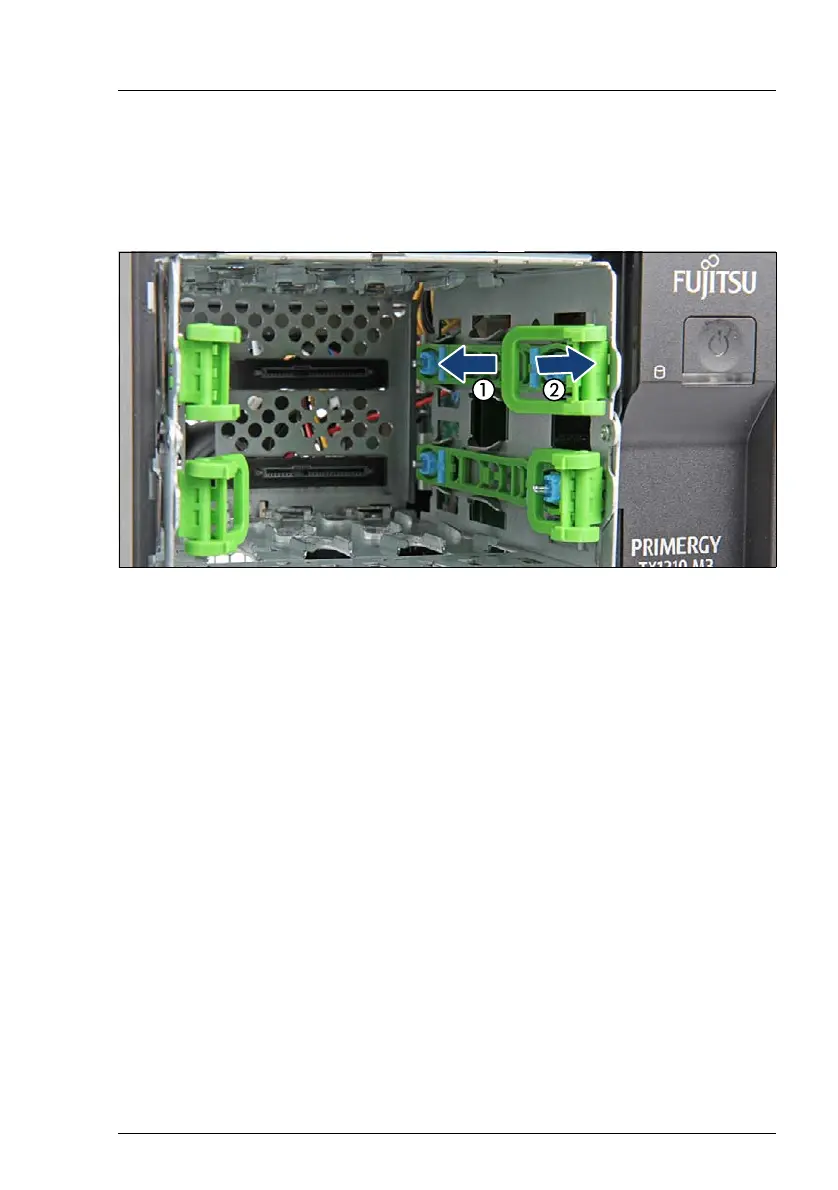

Figure 39: Inserting the Easyrails into their HDD bay
Ê Push the Easyrails completely into the bay (1).
Ê Pull out on the green handles on the Easyrails to lock them in place (2).
7.3.4 Concluding steps
Ê "Reassembling" on page 51
Ê "Connecting the power cord" on page 56
Ê "Switching on the server" on page 57
