Fujitsu PRIMERGY TX1310 M3

TX1310 M3 Upgrade and Maintenance Manual 55
Basic hardware procedures
4.5.3 Installing the side cover

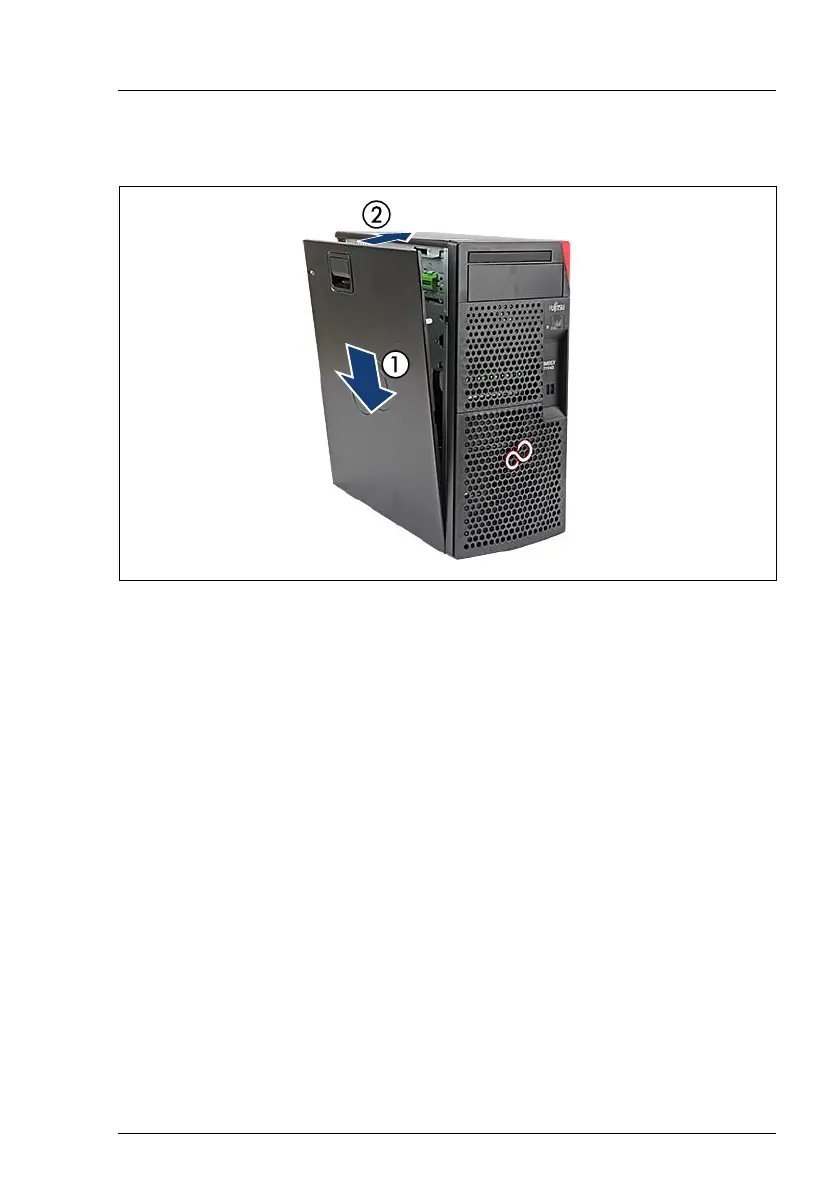

Figure 15: Installing the side cover
Ê Hook the side cover in the bottom side cant of the chassis (1).
Ê Push the side cover against the chassis until the locking mechanism
engages (2).
