Fujitsu PRIMERGY TX1310 M3

TX1310 M3 Upgrade and Maintenance Manual 117
Expansion cards and backup units
9.3.2.2 Removing an expansion card
Ê If applicable, disconnect internal cables from the expansion card.

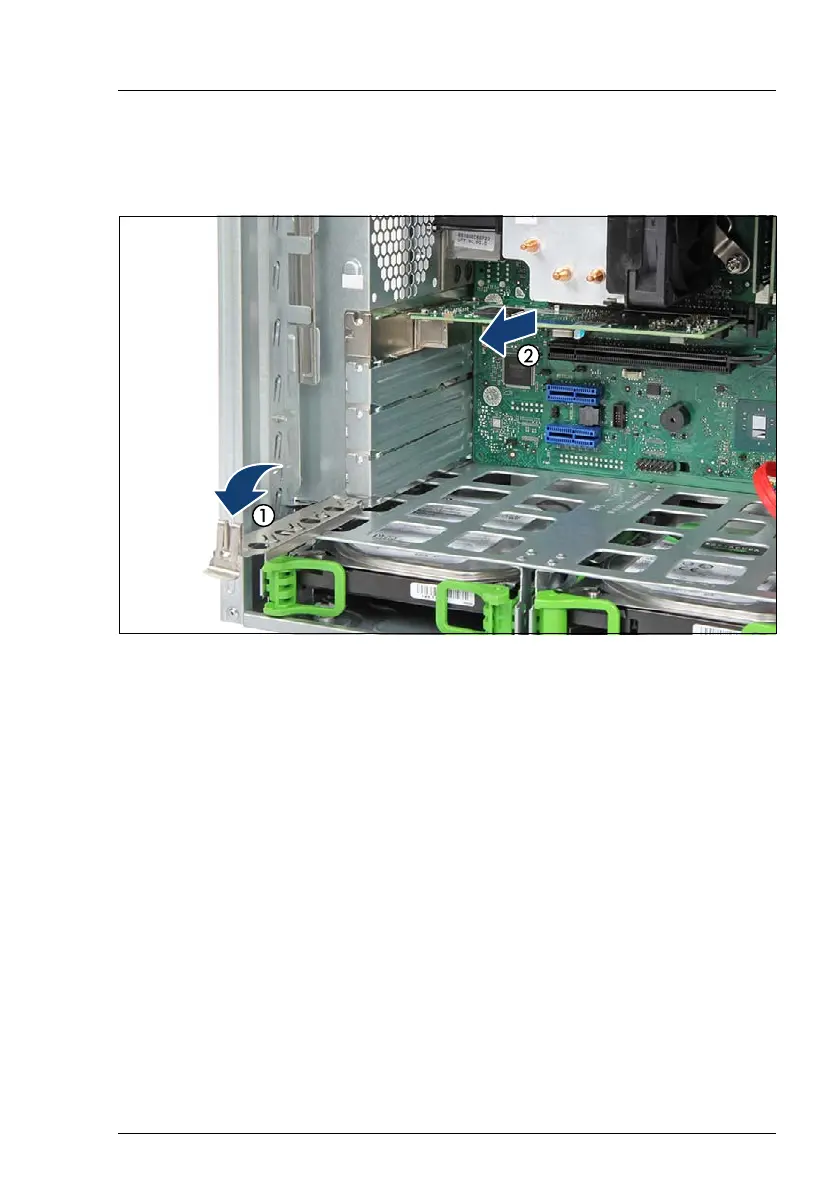

Figure 58: Removing an expansion card
Ê Open the slot bracket clamp (1).
Ê Carefully remove the expansion card from its slot (2).
