Expansion cards and backup units
9.3.1.2 Removing the PCI slot bracket

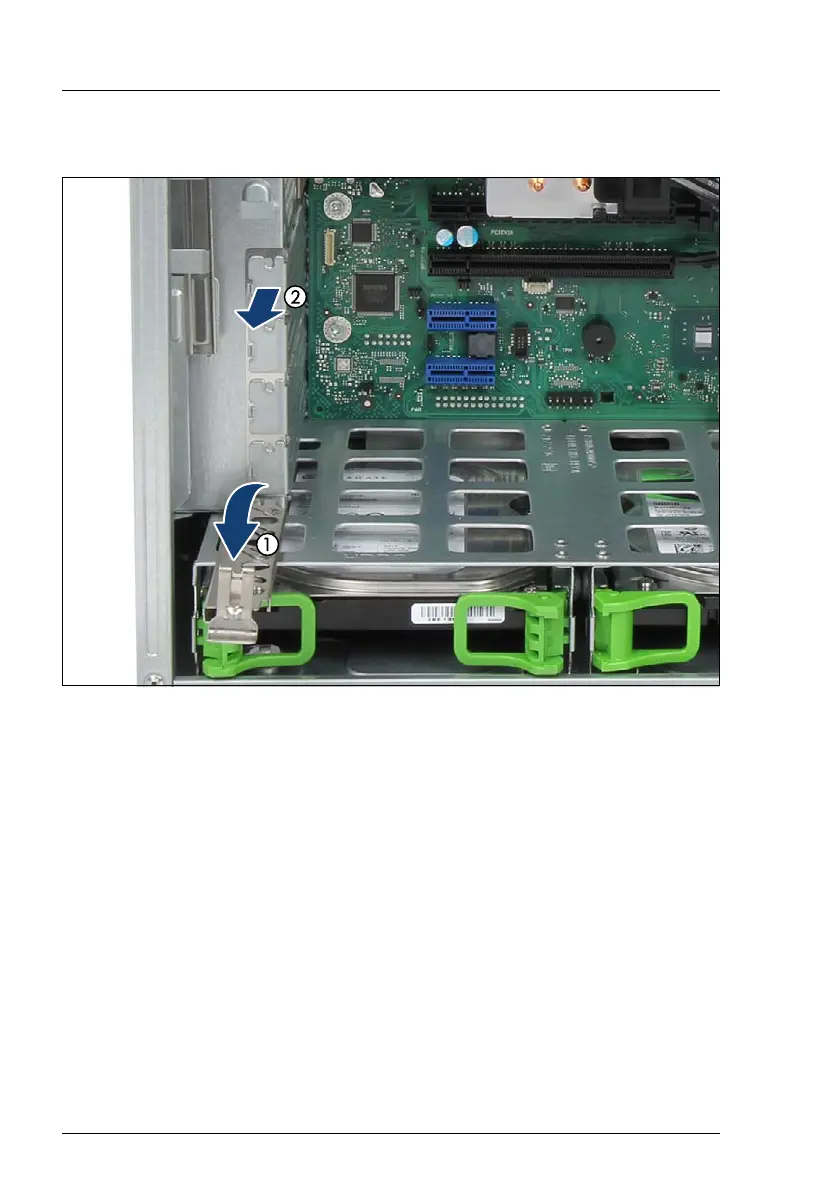

Figure 56: Removing the PCI slot bracket
Ê Open the slot bracket clamp (1).
Ê Remove the desired slot bracket (2).
V CAUTION!
Keep the slot bracket for future use.
Always replace slot brackets into unused PCI slot openings to comply
with applicable EMC regulations and satisfy cooling requirements.
