Fujitsu PRIMERGY TX1310 M3

86 Upgrade and Maintenance Manual TX1310 M3
Hard disk drives (HDDs)
7.2.3 Installing a 3.5-inch HDD

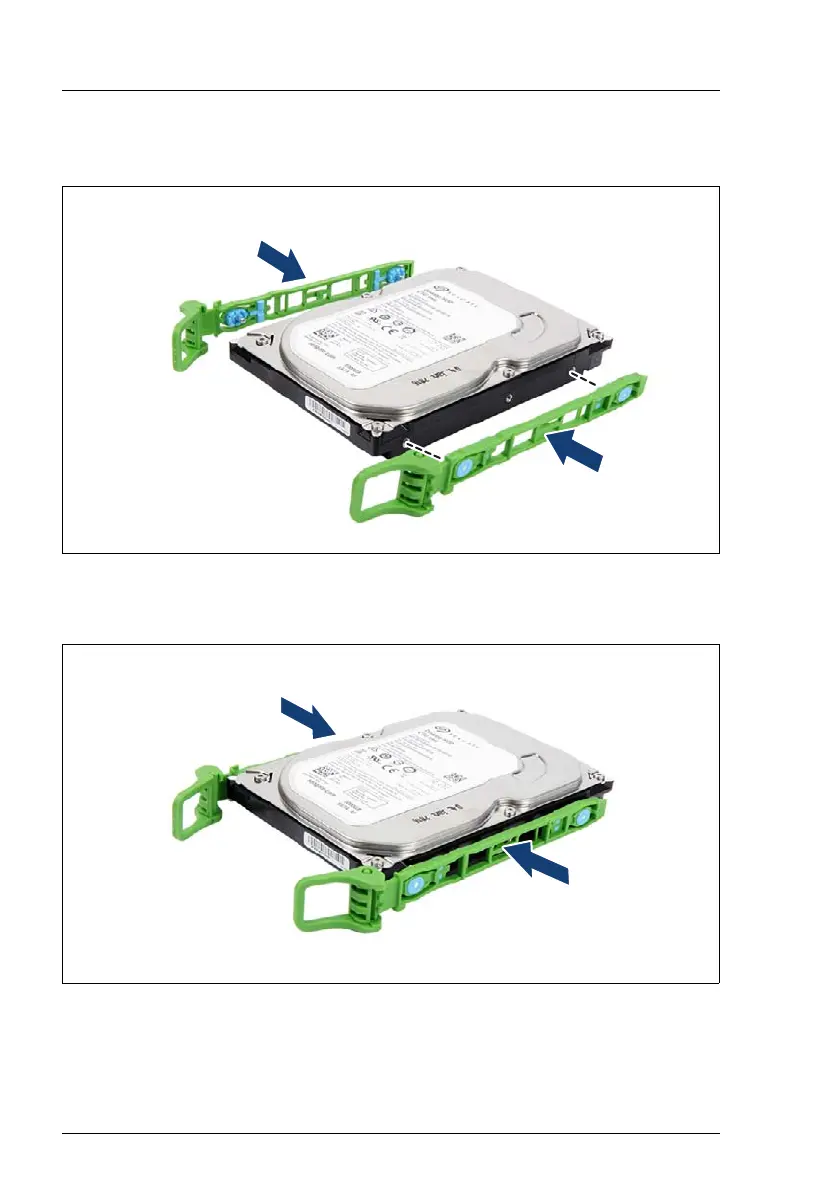

Figure 34: Aligning the Easyrails
Ê Align the two pins on the Easyrails with the screw holes on the HDD.
Figure 35: Attaching the Easyrails
Ê Attach an Easyrail each side of the HDD.
