50 Upgrade and Maintenance Manual TX1310 M3
Basic hardware procedures
4.4.3 Removing the front cover
V CAUTION!
The side cover must be removed, before removing the front cover.

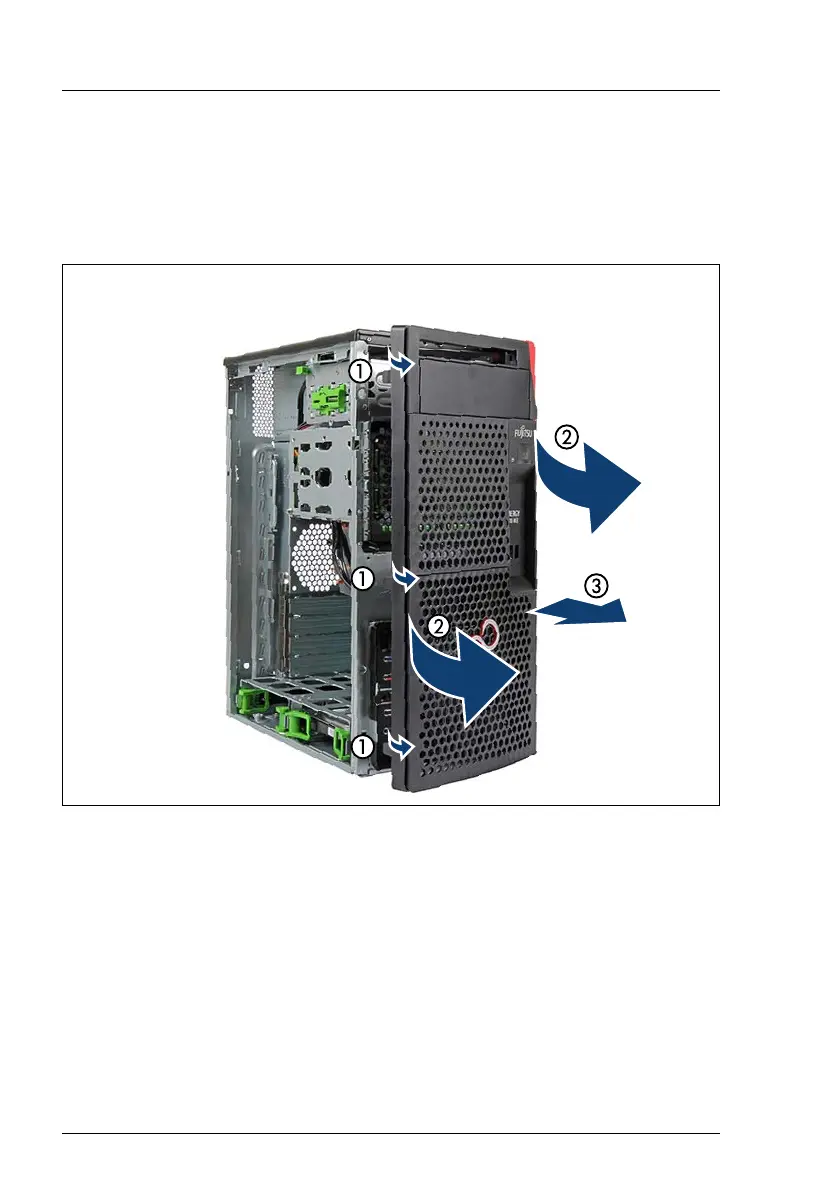

Figure 9: Removing the front cover
Ê Disengage the three locking tabs on the front cover by pulling it forwards (1).
Ê Carefully rotate open (2) and unhook the front cover (3).
