Fujitsu PRIMERGY TX1310 M3

TX1310 M3 Upgrade and Maintenance Manual 49
Basic hardware procedures
Extending the HDD cage out of the chassis

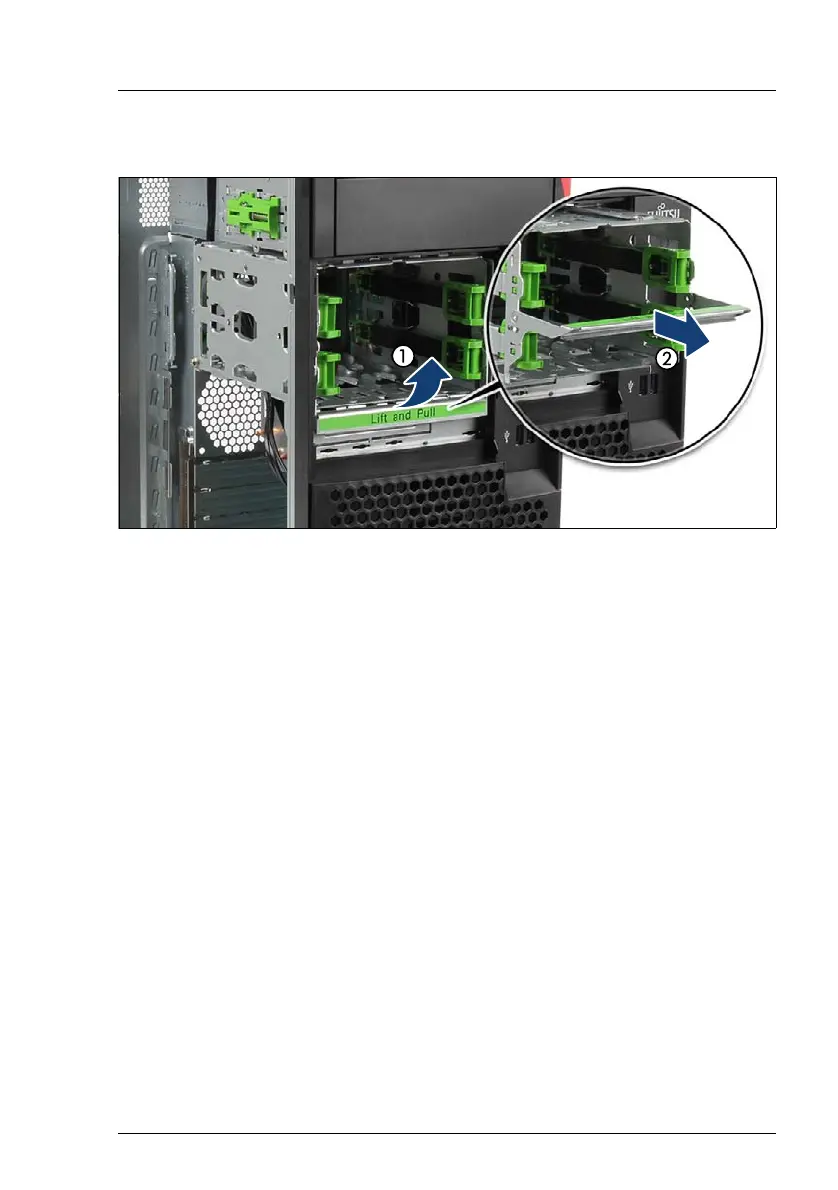

Figure 8: Lifting up the lever and pulling out the HDD cage
Ê Lift up the locking lever on the HDD cage (1) and pull out the HDD cage (2).
I The HDD cage is stopped by a screw.
