Basic hardware procedures
4.5.2 Sliding the HDD cage into the chassis
Sliding the HDD cage into the chassis

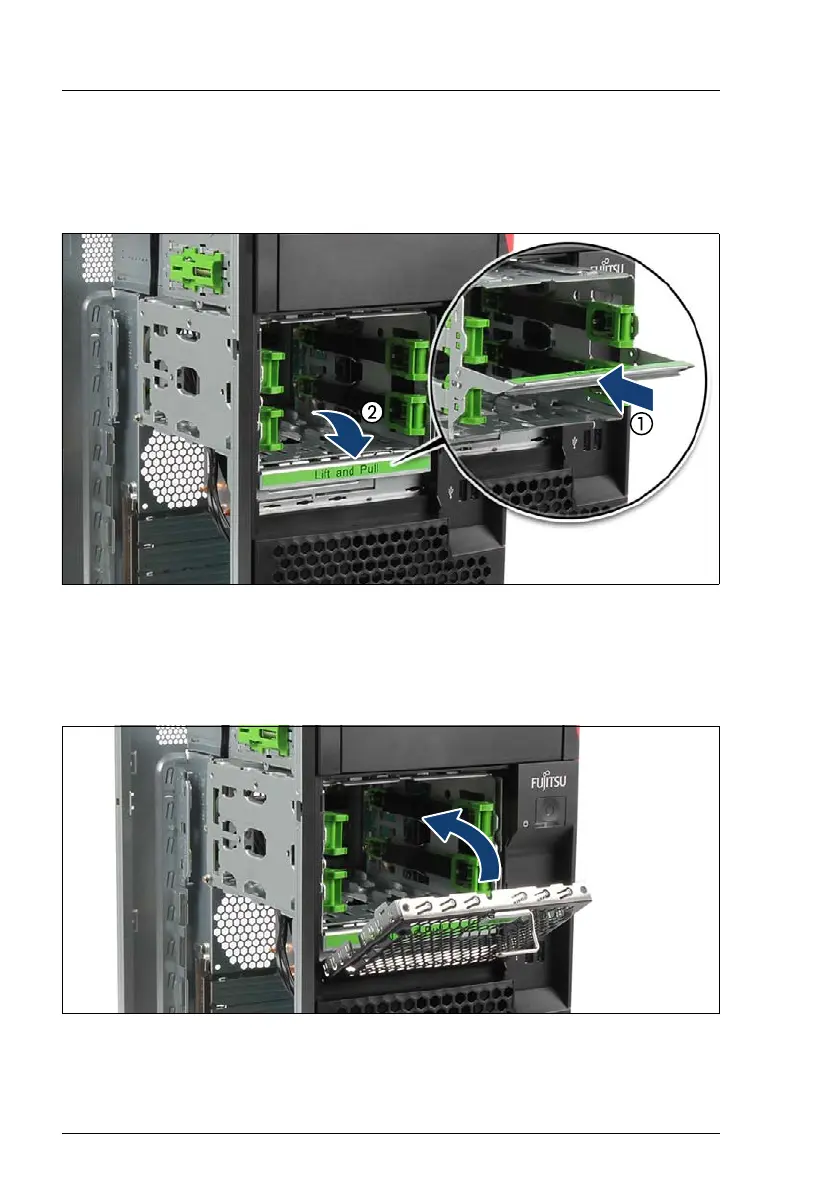

Figure 11: Pushing the HDD cage in and folding down the lever
Ê Push the HDD cage back into the chassis (1) and fold down the lever (2).
Installing the HDD cage door
Figure 12: Installing the HDD cage door
Ê Install the HDD cage door.
