Fujitsu PRIMERGY TX1310 M3

TX1310 M3 Upgrade and Maintenance Manual 99
System fans
8.2.3 Installing the new rear fan

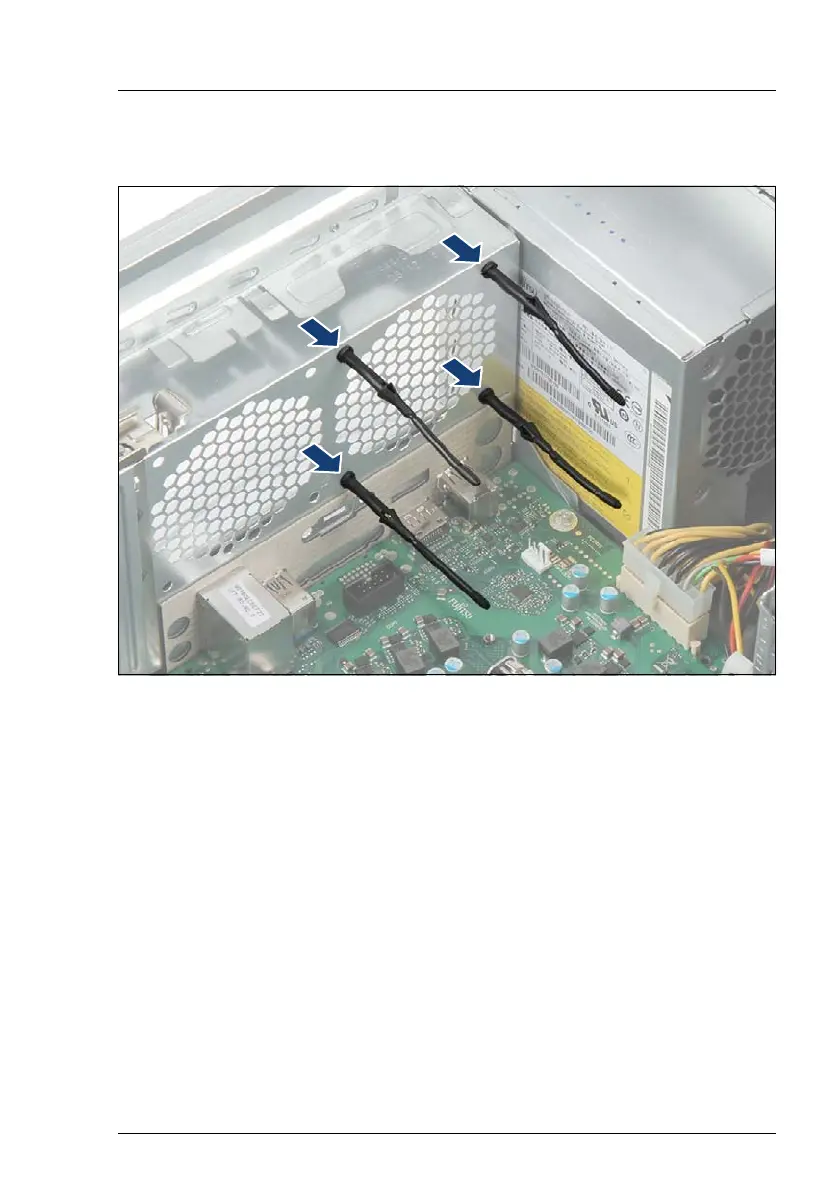

Figure 43: Inserting new rubber rivets
Ê Lead the four rubber rivets through the screw holes on the rear chassis wall.
Ê Pull tight until the sockets on the rubber rivets properly engage with the rear
chassis wall.
