98 Upgrade and Maintenance Manual TX1310 M3
System fans

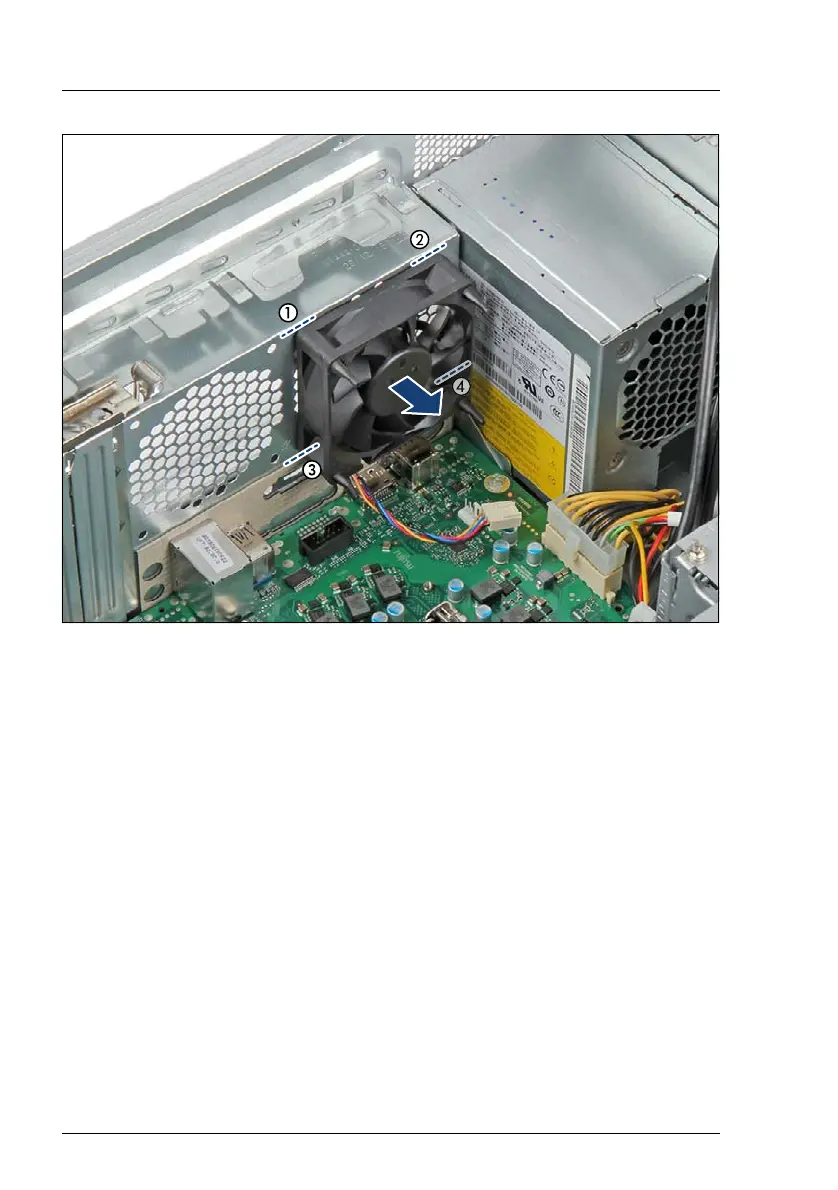

Figure 42: Removing the defective rear fan
Ê Extend the defective rear fan somewhat (see arrow).
Ê Cut through the four rubber rivets between the rear fan and the chassis
using a diagonal pliers in sequence 1-4.
