TX1310 M3 Upgrade and Maintenance Manual 219

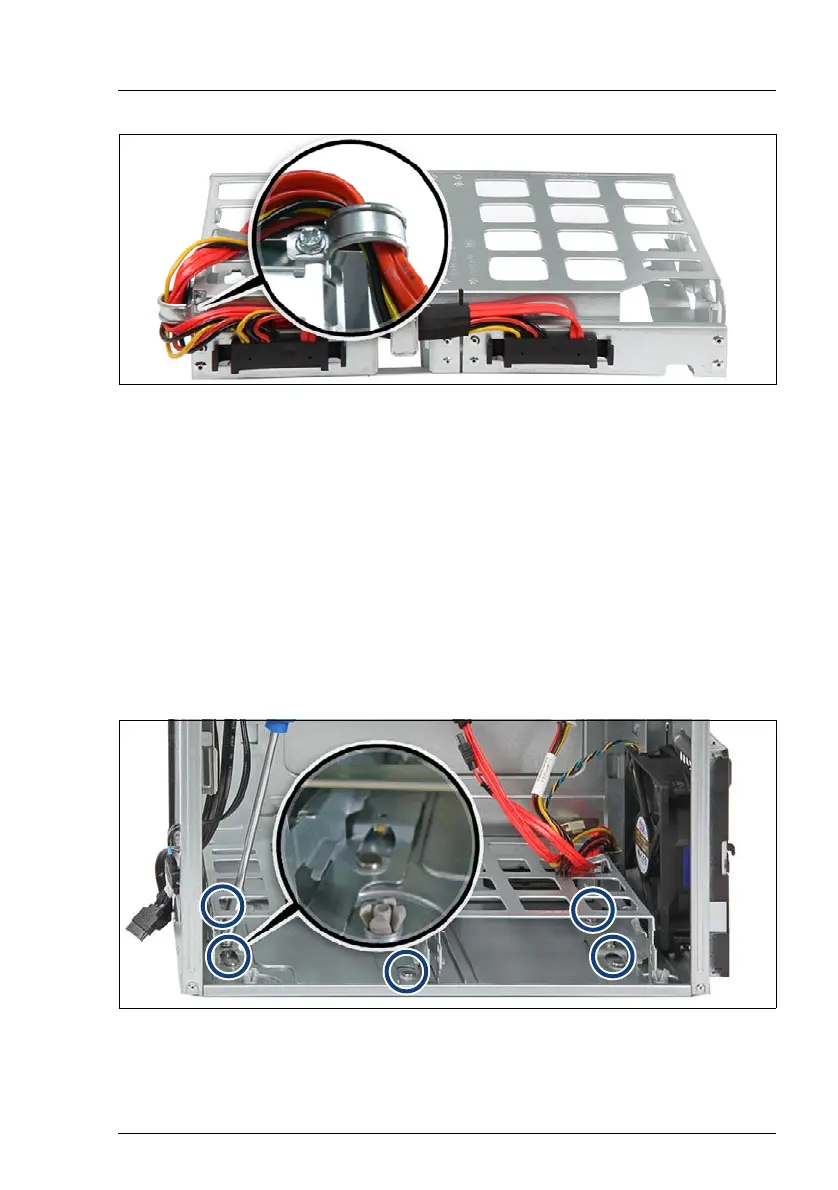

Figure 138: Removing the screw
Ê Remove the screw (see close-up).
Ê Remove the defective cable from the bottom HDD cage.
16.3.2.3 Installing the new HDD cable
I When installing the bottom HDD cage into the chassis, make sure that
the chassis is in upright position.
Ê Install the new cable to the bottom HDD cage.
Ê Insert the bottom HDD cage into the chassis so that the fixation bolts fit in
the wide ends of the keyhole slots.
Figure 139: Position of the fixation bolts in chassis
Ê Push the bottom HDD cage back into the chassis until the fixation bolts lock
in the narrow ends of the keyhole slots.
