198 Upgrade and Maintenance Manual TX1310 M3
System board and components
15.4.2 Removing the system board
Ê Disconnect all cables from the system board.

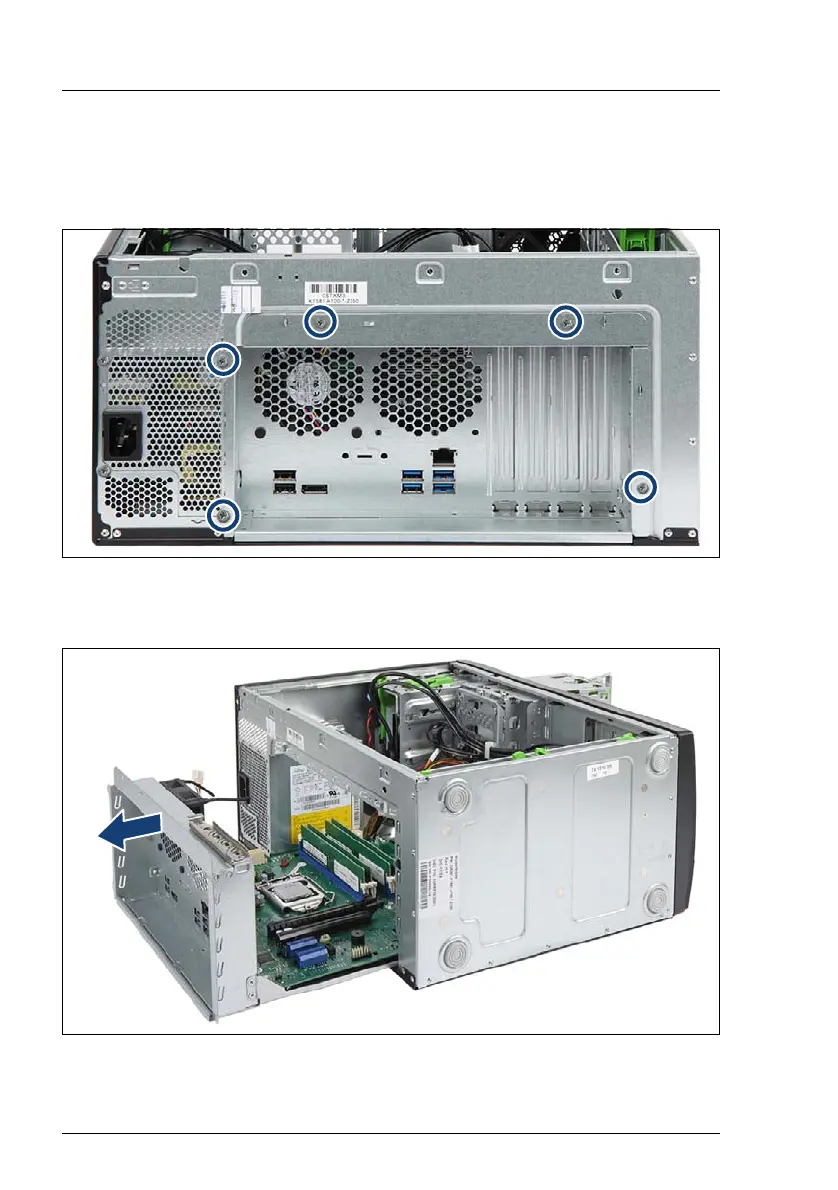

Figure 119: Removing the screws
Ê Remove five screws from the chassis (see circles).
Figure 120: Pulling out the system board tray
Ê Pull the system board tray out of the chassis.
