170 Upgrade and Maintenance Manual TX1310 M3
12.3.2.2 Removing a backup drive
I For easier access to the backup drive connectors, it is recommended to
remove the PSU before removing the backup drive.

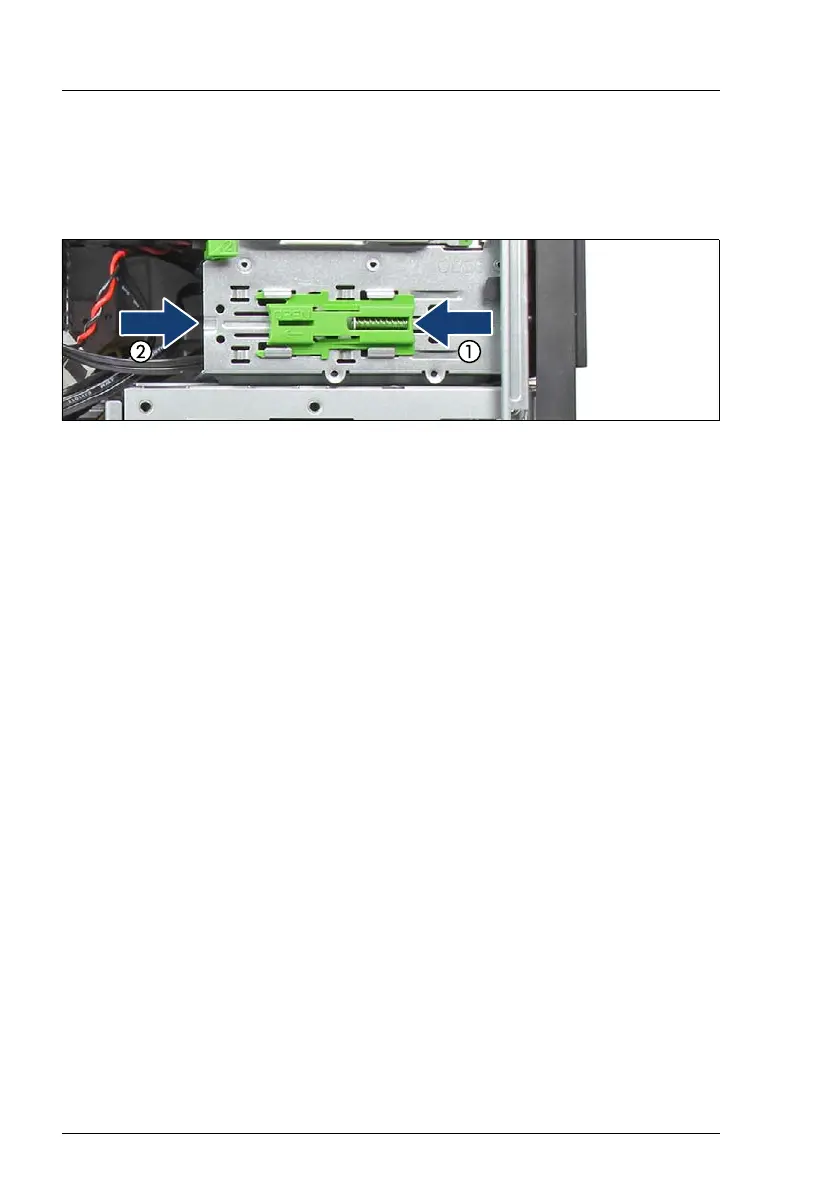

Figure 104: Removing backup drive
Ê Slide the locking latch in the direction of the arrow (1) and press somewhat
out the backup drive from behind (2).
Ê Disconnect all cables from the backup drive.
Ê Remove the backup drive out of its bay.
12.3.2.3 Concluding steps
Ê "Sliding the HDD cage into the chassis" on page 52
Ê "Reassembling" on page 51
Ê "Connecting the power cord" on page 56
Ê "Switching on the server" on page 57
Ê "Reconfiguring the backup software solution" on page 66
Ê "Resuming BitLocker functionality" on page 70
