Hard disk drives (HDDs)
7.1 Basic information
7.1.1 General equipping rules
– HDDs with different capacities are installed from highest to lowest capacity.
– HDDs with different rotation speeds are installed from highest to lowest
speed.
– Maximum configuration: 4x 3.5-inch HDDs
7.1.2 Mounting order

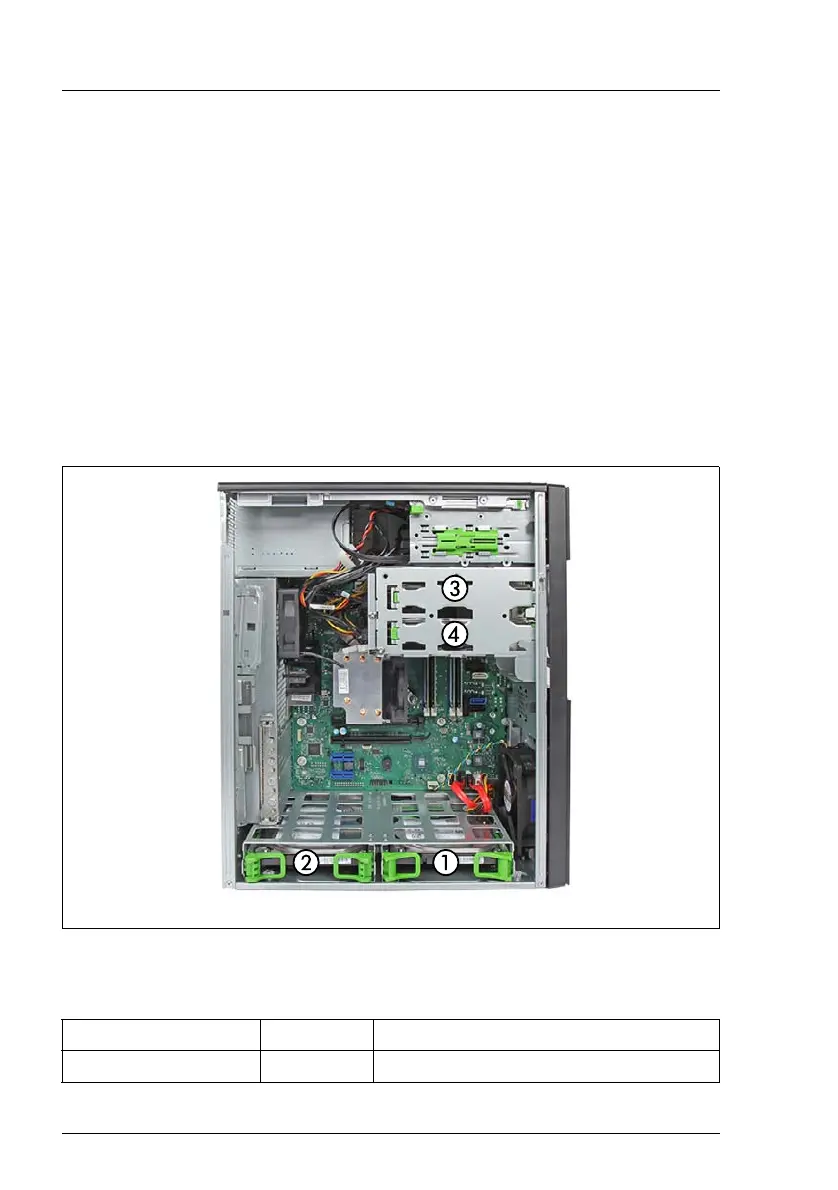

Figure 31: 3.5-inch HDD mounting order
SATA connectivity
Controller Channel Connection
PCI SATA controller 1 Drives 1-4
