192 Upgrade and Maintenance Manual TX1310 M3
System board and components

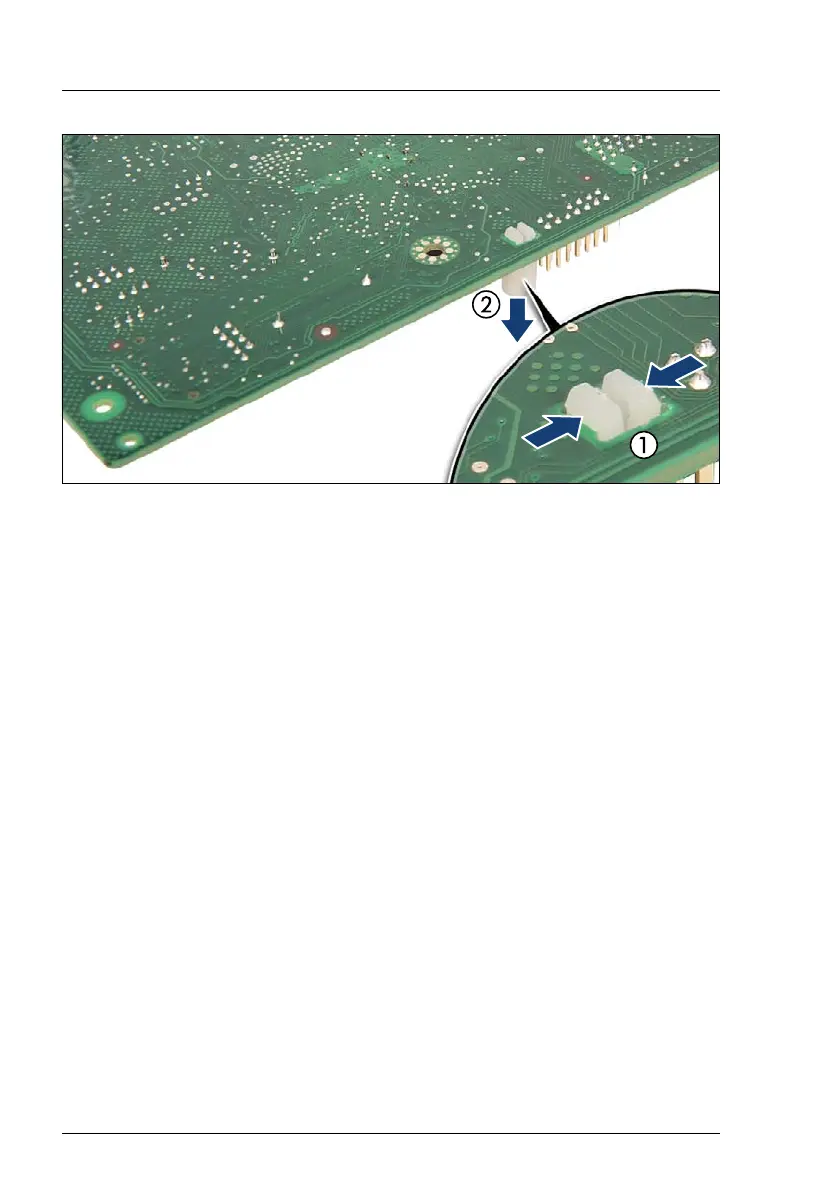

Figure 118: Removing the TPM spacer
Ê Using a flat nose pliers, press together the hooks on the TPM spacer (1, see
close-up) and remove it from the system board (2).
I If the TPM is to be replaced, the TPM spacer may remain on the
system board.
Ê Install the system board, see section "Installing the system board" on
page 200.
15.3.2.3 Concluding steps
Ê Install all expansion cards, see section "Expansion cards" on page 113.
I Make sure that you reinstall each card in the slot it was located before
the replacement.
Ê "Reassembling" on page 51
Ê "Connecting the power cord" on page 56
Ê "Switching on the server" on page 57
