Basic hardware procedures
Removing the HDD cage door

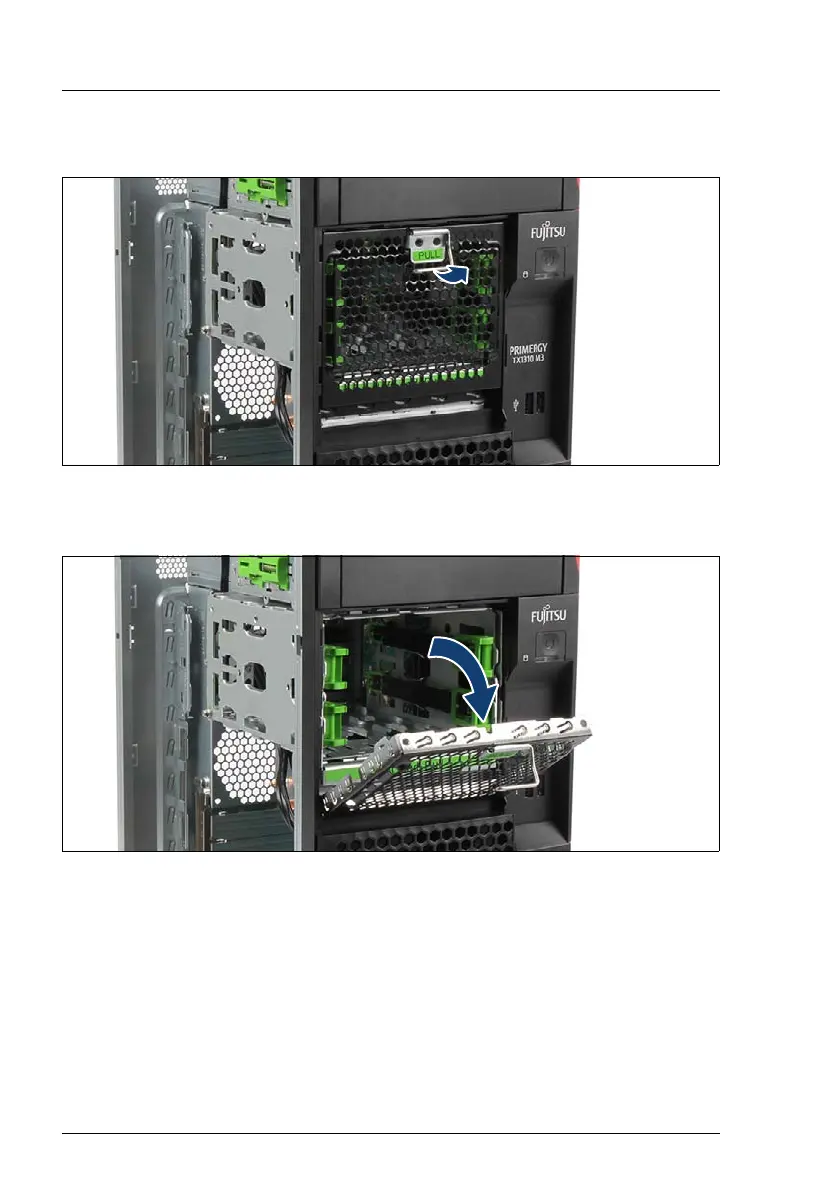

Figure 6: Pulling up the lever
Ê Pull up the lever of the HDD cage door (see arrow).
Figure 7: Folding down the HDD cage door
Ê Fold down the HDD cage door.
V CAUTION!
The HDD cage door can only be opened after the side cover has
been removed because of the anti-theft lock.
Ê Remove the HDD cage door.
