78 Upgrade and Maintenance Manual TX1310 M3
Power supply unit (PSU)

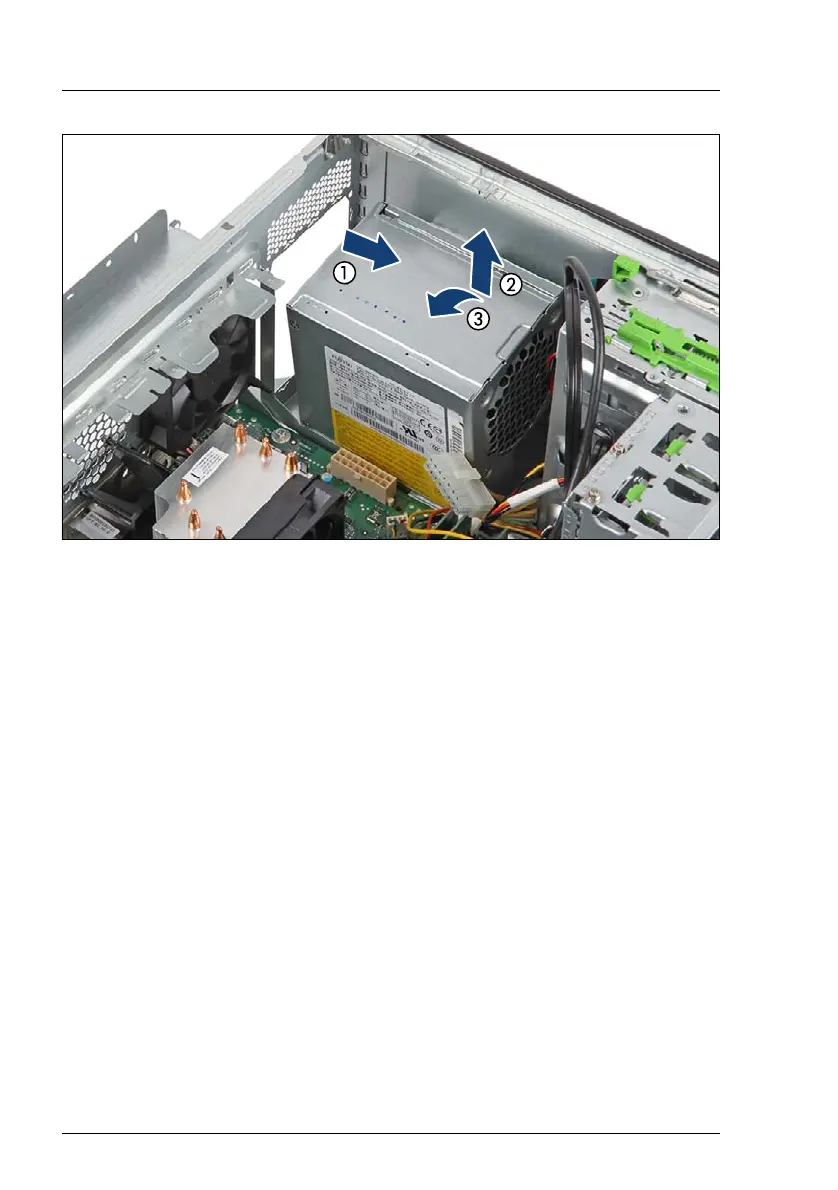

Figure 26: Removing the PSU
Ê Slide the PSU to the right about 2 cm to disengage the locking
mechanism (1).
Ê Lift the PSU about 4 cm (2) and remove it out of the chassis in a slight
angle (3).
