134 Upgrade and Maintenance Manual TX1310 M3

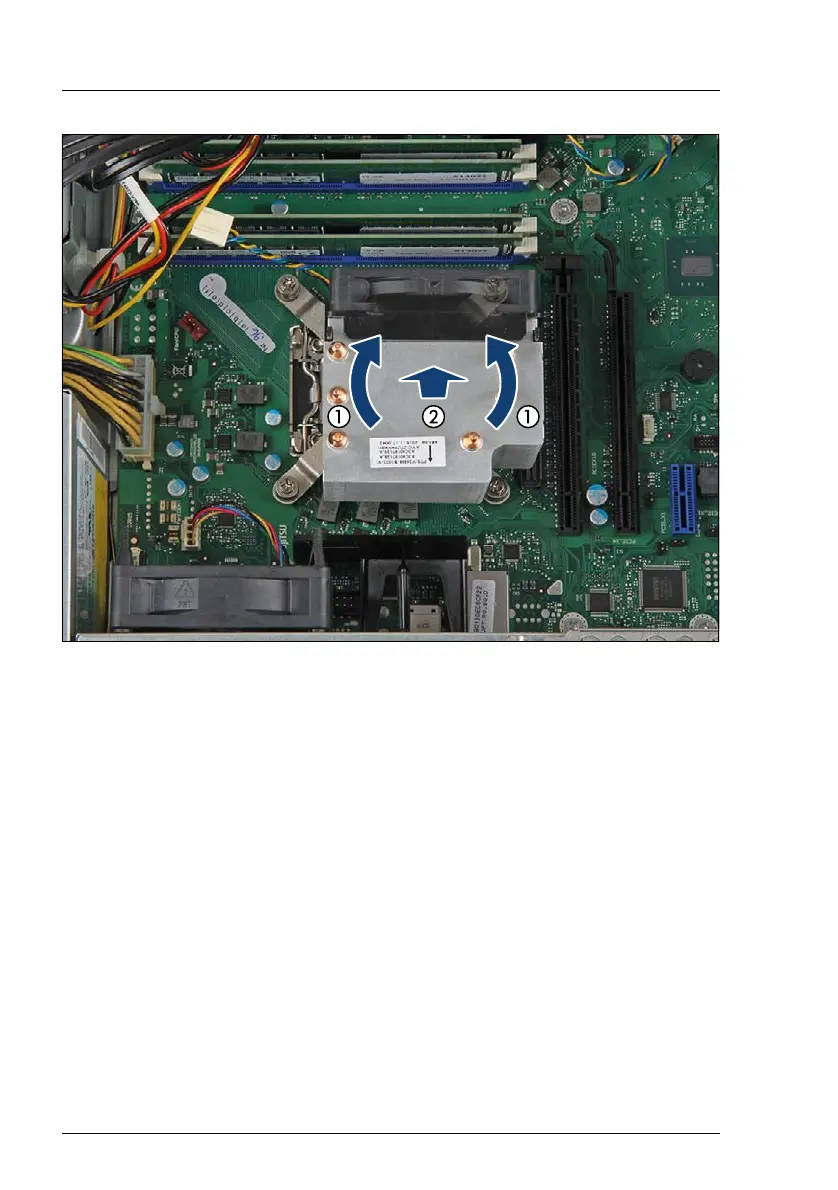

Figure 68: Removing the heat sink (C)
Ê Carefully turn the heat sink back and forth to detach it from the CPU (1).
I This may be necessary due to the adhesive quality of the thermal
paste located between the heat sink and CPU.
V CAUTION!
Pay special attention not to damage any system board components
surrounding the CPU socket.
Ê Lift the heat sink out of the chassis (2).
Ê Thoroughly clean residual thermal paste from the surface of the heat sink
and the CPU using a lint-free cloth.
