Fujitsu PRIMERGY TX1310 M3

144 Upgrade and Maintenance Manual TX1310 M3
Processor (CPU)

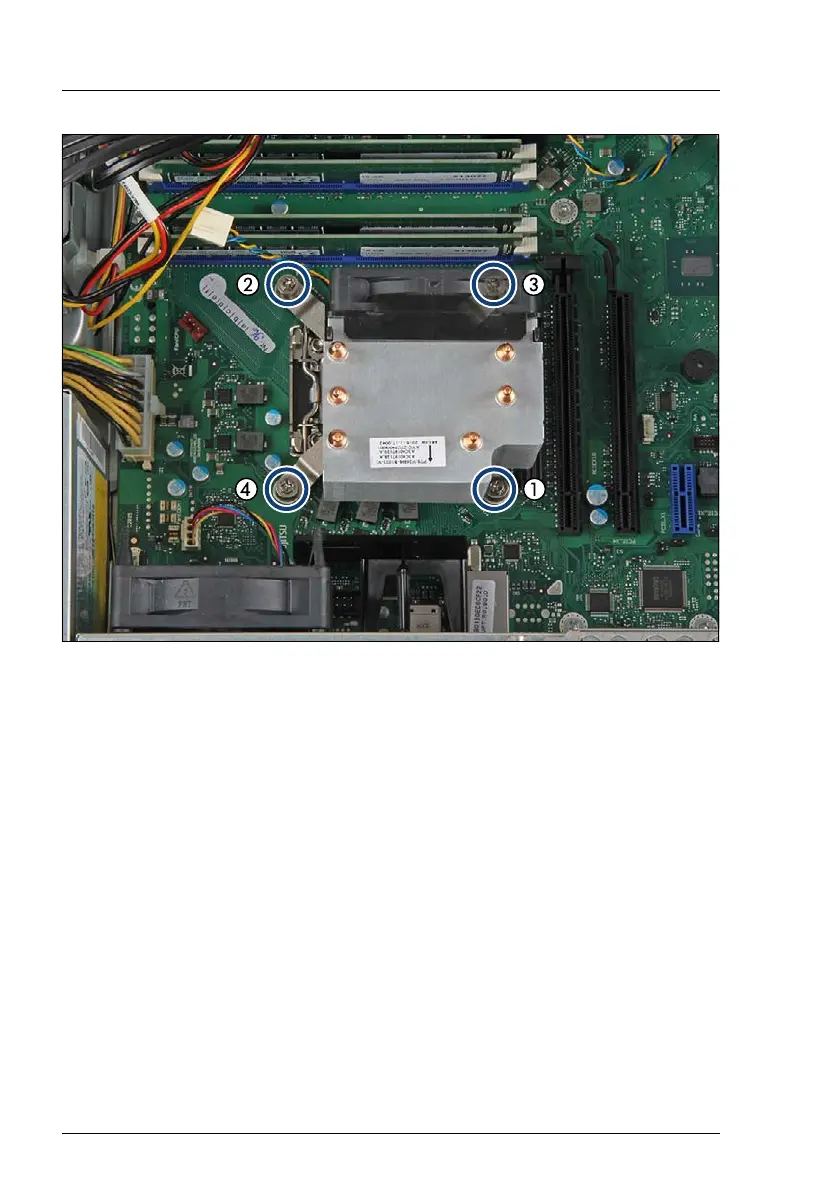

Figure 79: Installing the heat sink (B)
Ê Fasten the four captive screws on the heat sink in a crossover pattern (screw
torque: 0.6 Nm, not applicable for Japan) (1-4).
