Processor (CPU)

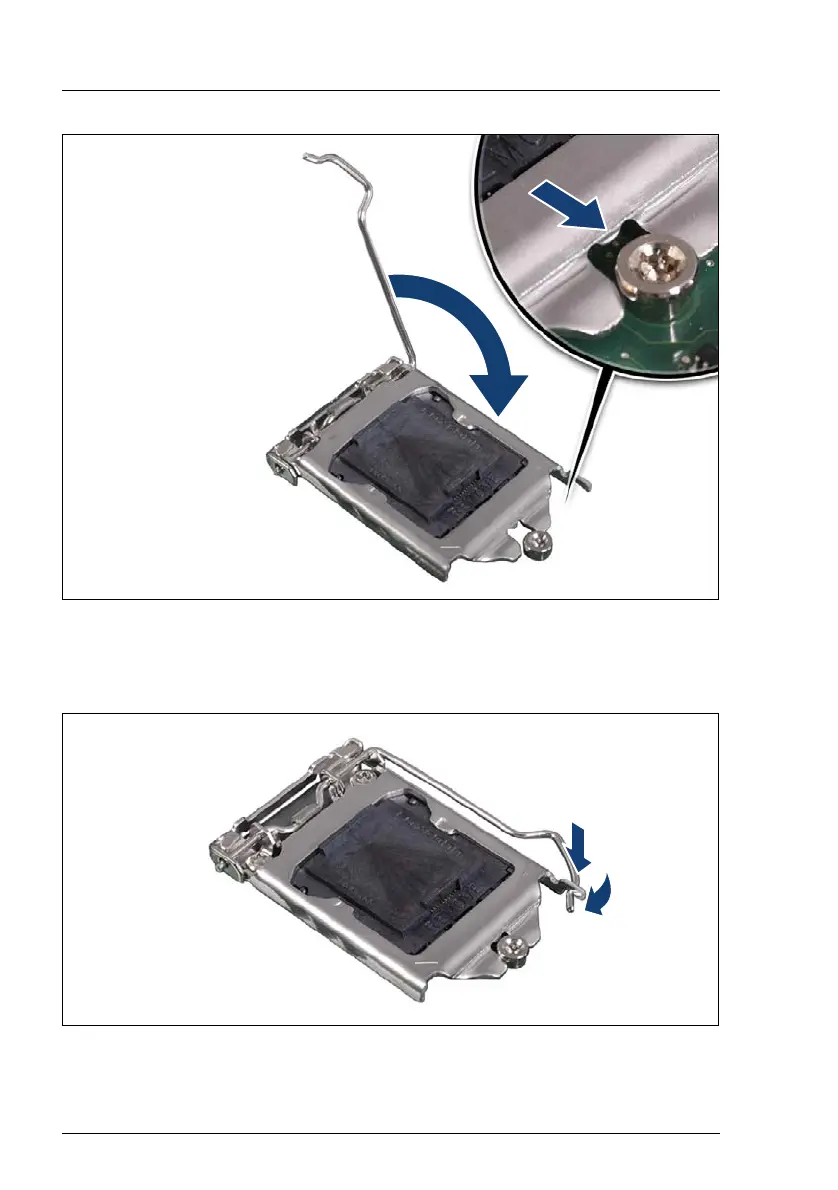

Figure 83: Closing the load plate (B)
Ê Lower the socket lever while making sure that the front edge of the load plate
slides under the shoulder screw cap (see close-up) as the lever is lowered.
Figure 84: Latching the socket lever
Ê Latch the socket lever under the load plate tab.
