Fujitsu PRIMERGY TX1310 M3

TX1310 M3 Upgrade and Maintenance Manual 153
Processor (CPU)

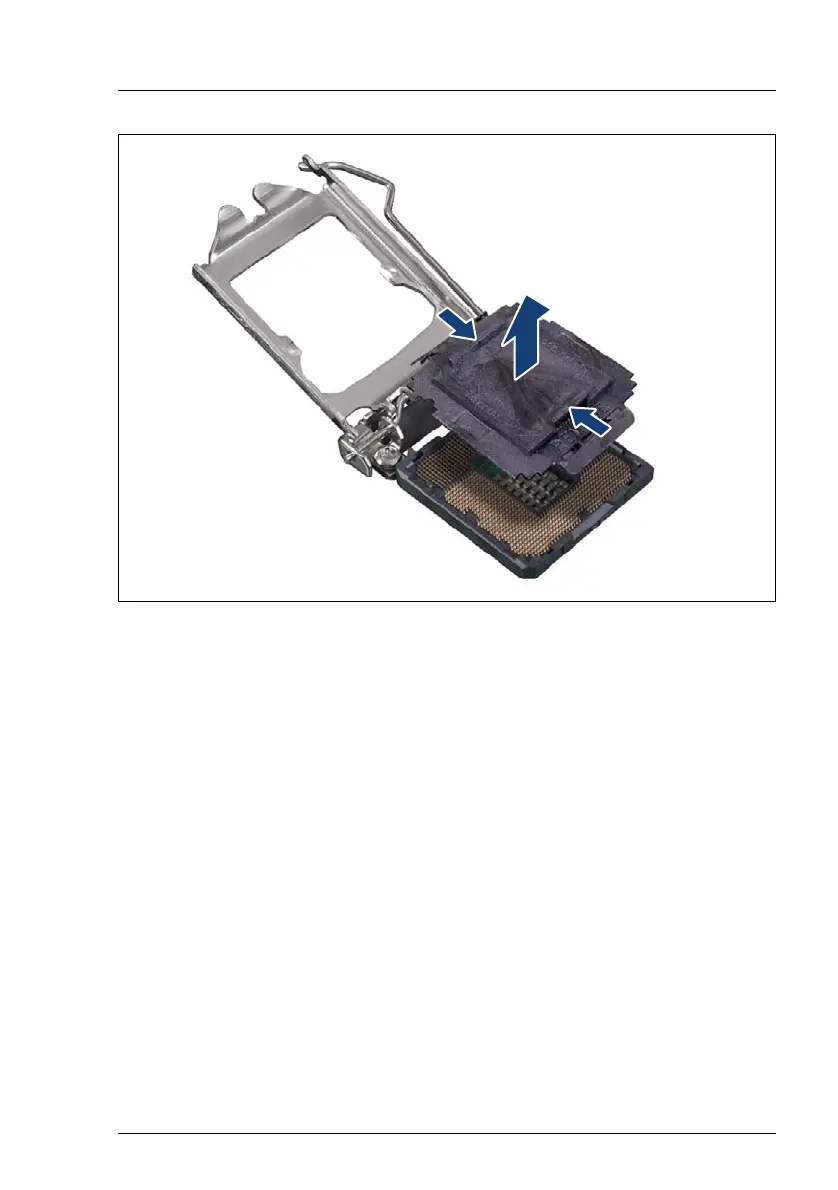

Figure 87: Removing the protective cover
Ê Remove the protective cover from the CPU socket. Proceed as follows:
Ê Place your thumb against the front edge of the protective socket cover
and rest your index finger on the rear grip.
Ê Lift the front edge of the socket to disengage the cover from the socket
and lift the cover up and away from the socket.
V CAUTION!
Ê Be careful not to touch or bend the pins on the CPU socket.
Ê Save the socket cover for future use. Always replace the socket
cover if you remove the CPU from the socket.
