Cables

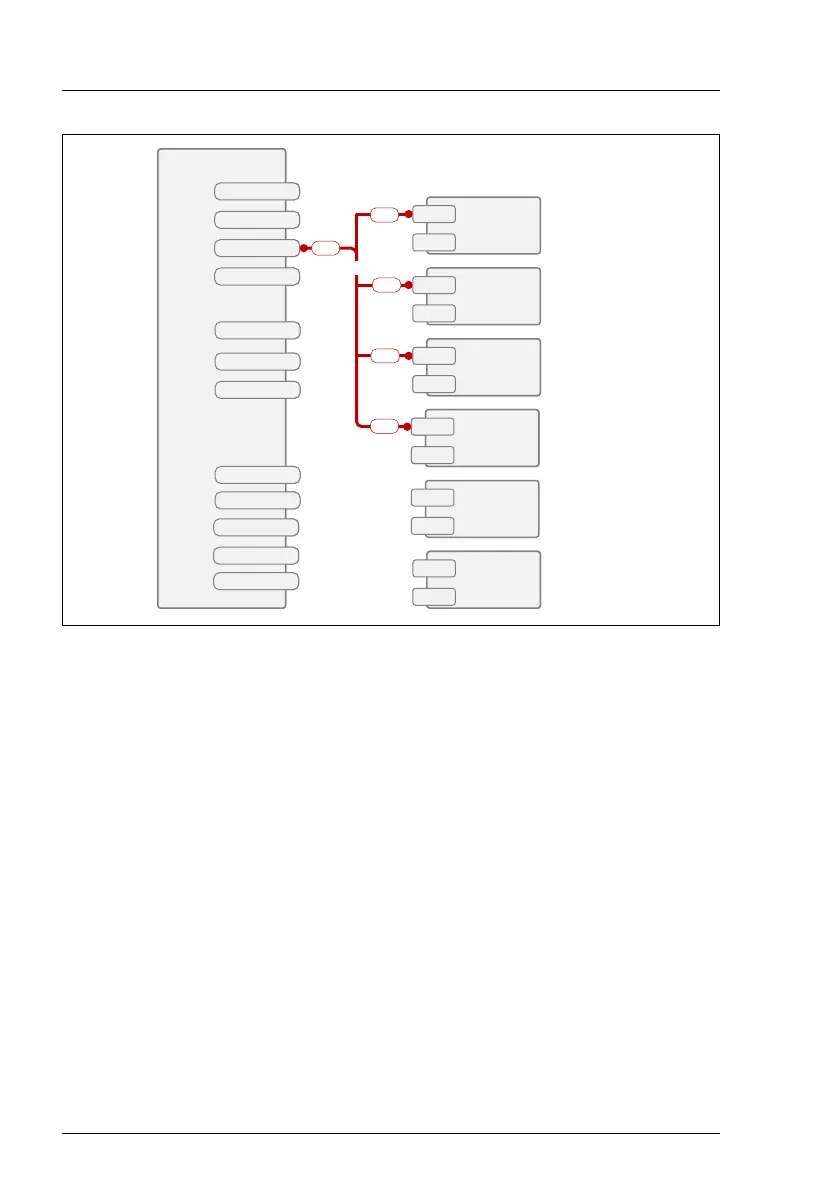

Figure 131: Cabling power SATA HDD3, SATA HDD4, ODD and RDX
Ultra Slim
ODD
PWR
SATA
Backup DRV
RDX
PWR
SATA
SATA HDD4
PWR
SATA
SATA HDD3
PWR
SATA
SATA HDD2
PWR
SATA
SATA HDD1
System Board D3521-A
PWR
PWR HDD bottom
PWR HDD-ODD
USB_3/4x
FAN (OEM)
FAN (CPU)
SATA 5
SATA 4
FAN (SYS)
SATA 3
SATA 1
SATA 2
C2
P3
P5
P1
P4
P2
System Board D3521-A
PWR
PWR HDD bottom
PWR HDD-ODD
USB_3/4x
FAN (OEM)
FAN (CPU)
SATA 5
SATA 3
FAN (SYS)
SATA 4
SATA 1
SATA 2
SATA HDD3
PWR
SATA
SATA HDD4
PWR
SATA
SATA HDD1
PWR
SATA
