TX1310 M3 Upgrade and Maintenance Manual 215

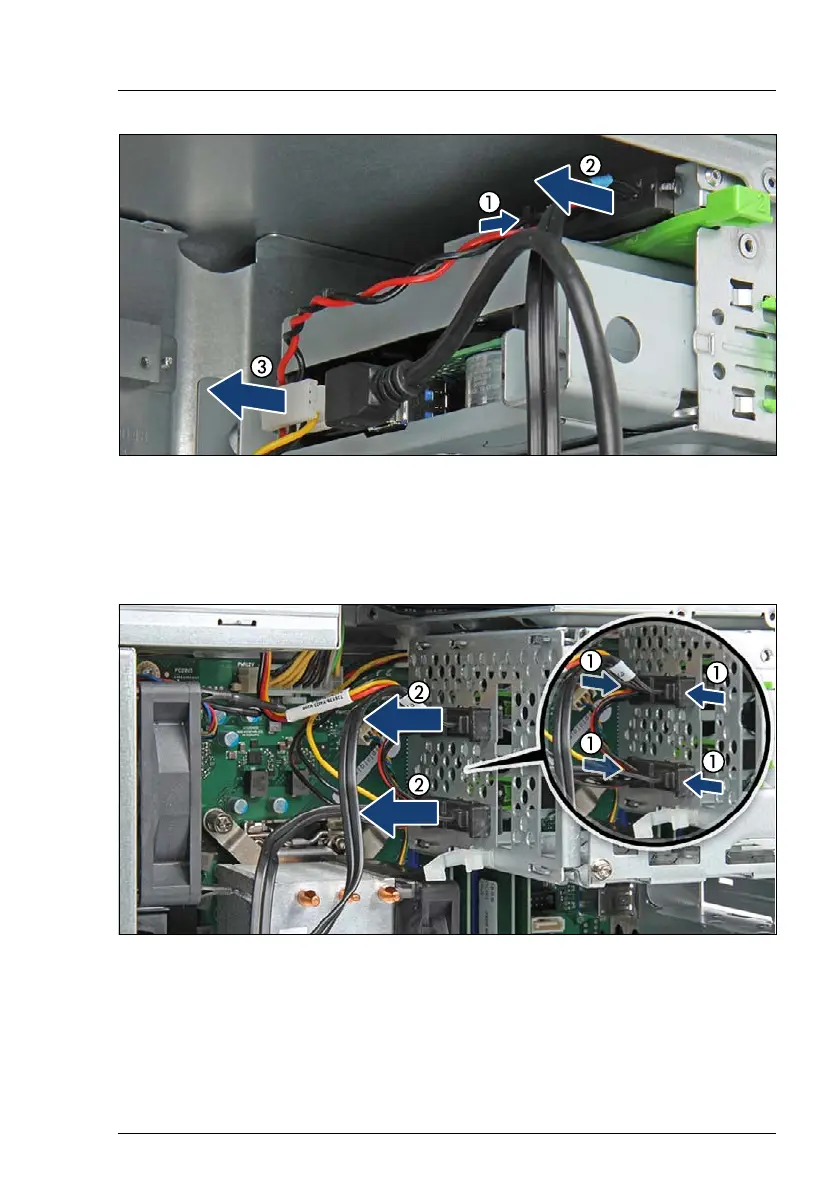

Figure 133: Removing the connectors from accessible drives
Ê Pinch the left side of the connector (1) and remove it from the ODD back
plate (2).
Ê Remove the connector from the backup drive (3).
Figure 134: Removing the connectors from top HDD cage
Ê Pinch the sides of the connector (1) and remove it from the top HDD
cage (2).
Ê Disconnect all system cable connectors from the system board.
Ê Remove the defective cable.
