Fujitsu PRIMERGY TX1310 M3 Upgrade And Maintenance Manual

TX1310 M3 Upgrade and Maintenance Manual 25
Before you start
TPM bit insert
Dedicated TPM
screw driver /
TPM module
fixing tool
0.6 Nm
TPM screw
One way
head
REM 3 x 15 mm
(black)
C26192-Y10-C176
Phillips
PH1 / (+) No. 1
0.4 Nm
HDD cage
door lock
M3 x 3.5 mm
(silver)
CA32432-0023
Phillips
PH1 / (+) No. 1
0.4 NM
TFM M2.5 x 4 mm
(silver)
C26192-Y10-C103
Hexagon nut
5mm
0.6 Nm
Serial
connector
UNC #4-40
(silver)
V26827-B408-V989
Screw driver/
bit insert
Torque
Screw Usage Type

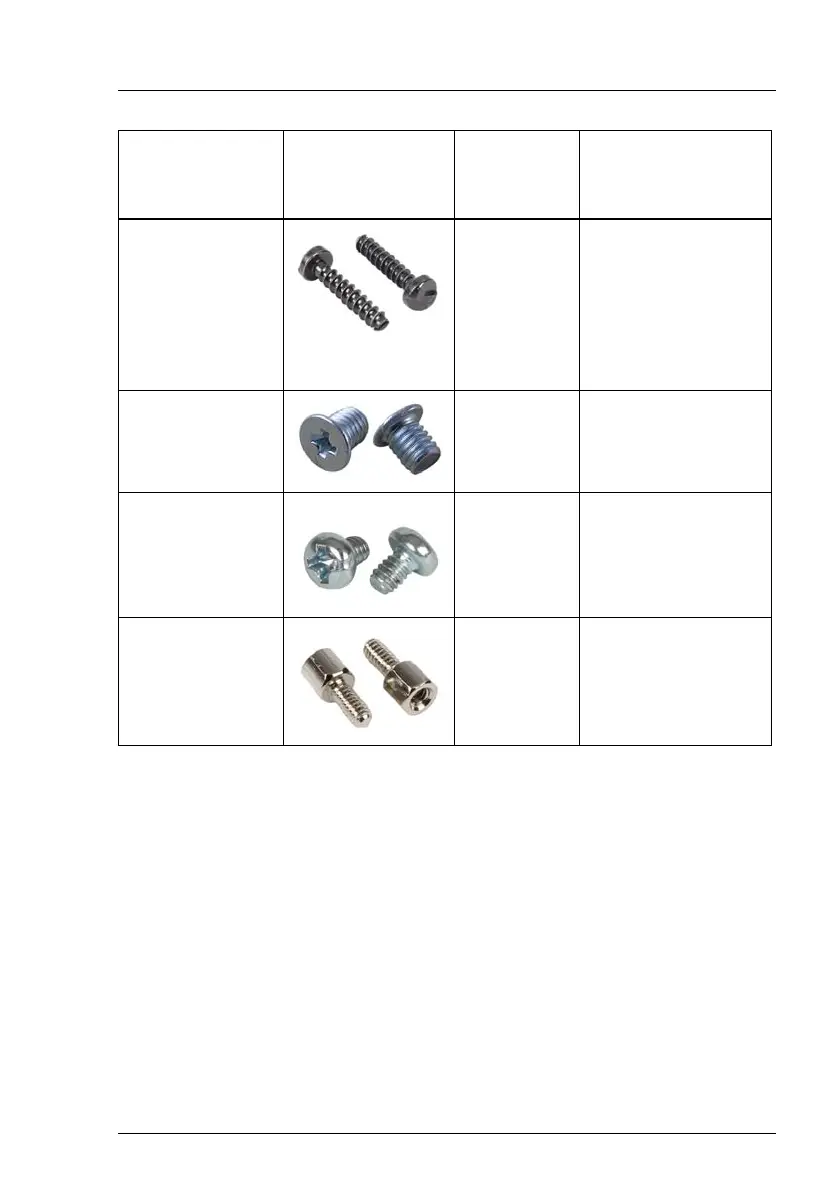

Table 3: List of used screws (Japan)

Fujitsu PRIMERGY TX1310 M3 Specifications

General

Processor cache	8 MB
Processor cores	4
Processor model	E3-1225V6
System bus rate	8 GT/s
Motherboard chipset	Intel® C236
Processor frequency	3.3 GHz
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor boost frequency	3.7 GHz
Processor operating modes	64-bit
Number of processors installed	1
ECC	Yes
Internal memory	8 GB
Memory clock speed	2400 MHz
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
HDD size	3.5 \
HDD speed	7200 RPM
RAID levels	0, 1, 10
HDD capacity	1000 GB
HDD interface	Serial ATA III
Optical drive type	DVD-RW
Total storage capacity	2000 GB
Maximum storage capacity	- TB
Number of HDDs installed	2
On-board graphics card model	Intel® HD Graphics 630
LAN controller	Intel® I219
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
Serial ports quantity	-
USB 2.0 ports quantity	3
VGA (D-Sub) ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
Chassis type	Tower
Compatible operating systems	Microsoft Hyper-V Server 2012 R2 Microsoft Hyper-V Server 2016 Microsoft Windows Server 2012 R2 Datacenter Microsoft Windows Server 2016 Datacenter Microsoft Windows Server 2012 R2 Standard Microsoft Windows Server 2016 Standard Microsoft Windows Server 2012 R2 Essentials Microsoft Windows Server 2016 Essentials Microsoft Windows Server 2012 R2 Foundation Microsoft Windows Storage Server 2012 R2 Standard Microsoft Windows Storage Server 2016 Standard Microsoft Hyper-V Server 2012 Microsoft Windows Server 2012 Datacenter Microsoft Windows Server 2012 Standard Microsoft Windows Server 2012 Essentials Microsoft Windows Server 2012 Foundation SUSE Linux Enterprise Server 12 Red Hat Enterprise Linux 7
Power supply	250 W
Power supply input frequency	50 - 60 Hz
Redundant power supply (RPS) support	No
Operating temperature (T-T)	10 - 35 °C
Certification	CB, RoHS, WEEE, GS, CE, CSA us, ULc/us, FCC Class A, VCCI:V3 Class A + JIS 61000-3-2, KC, CCC, C-Tick (AS / NZS CISPR 22 Class A)
Sustainability certificates	EPEAT Gold

Weight and Dimensions

Depth	305 mm
Width	180 mm
Height	375 mm
Weight	14000 g
