Power supply unit (PSU)

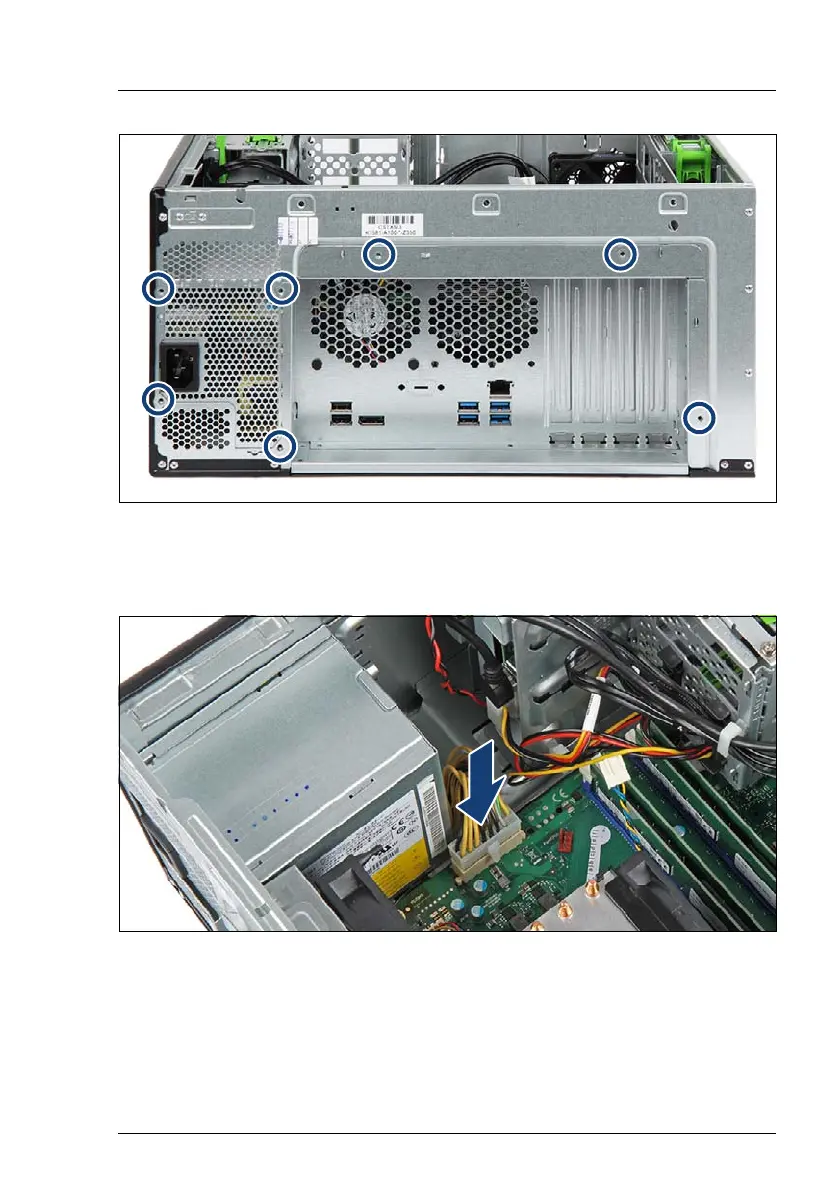

Figure 29: Fastening the screws
Ê Fasten the PSU with four screws and the chassis with three screws (see
circles).
Figure 30: Connecting power cable
Ê Connect the power cable to the system board connector "PWR12V".
Ê Push back the backup drive until it snaps into place.
