Brivo OEC 715/785/865 Mobile C-Arm X-Ray Product Service Manual
7-34

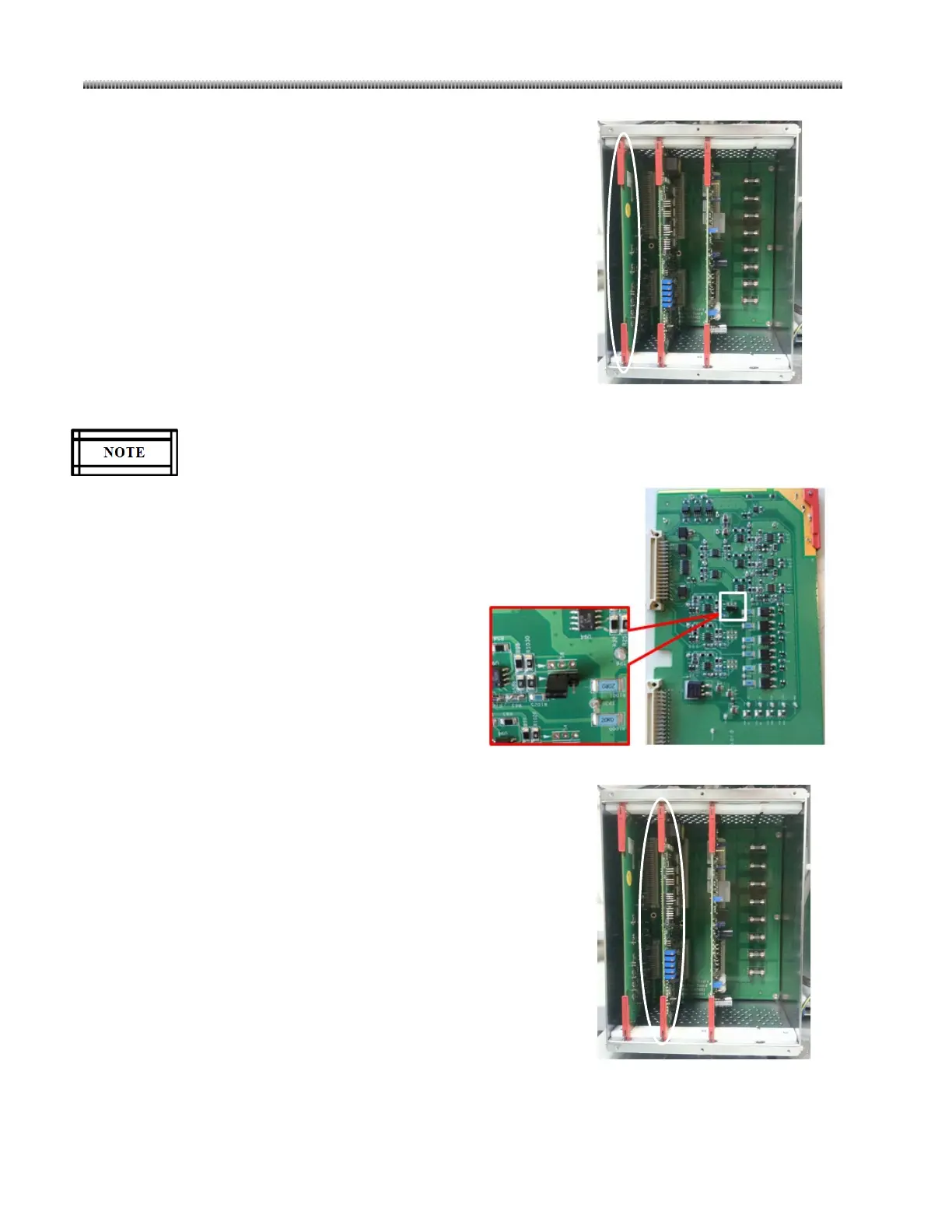

3. Take off the collimator control board and insert a new one.
4. Refer to 7.3.2 calibration matrix and chapter 4 to do calibration
and checks.
5. After calibration and check, shut down system and reinstall the
e-Box and Mainframe back covers.
Shorten the left 2 pins (pin 1-2) of jumper S5 on CCB board for collimator 5417680.
Shorten the right 2 pins (pin 2-3) of jumper S5 on CCB board for collimator kit 5075984.
Mainframe Control Board (P/N: 5075986)
1. Refer to 5.2.2 backup the product & software option files.
2. Remove the rear cover of the C-Arm console.
3. Release the screws of PCB box cover and remove it.
4. Remove the MCB board and insert a new one.
5. Refer to 5.2.2 to reconfigure the product & software options,
use the license file exported in step1.
6.
Refer to 7.3.2 calibration matrix and chapter 4 to do
calibration and checks.
7. After calibration and check, shut down system and reinstall
the e-Box and Mainframe back covers.
