Click Next to continue. Click on the Add button. Confirm to create a new rule and then enter a name for
the static NAT rule list. Click Ok to continue.
The next menu shows all rules contained within the newly named rule set. You may edit existing rules,
delete them, or add new ones. Since the rule set is new, it contains no rules at first. Click Add New Rule
to add one. The rule creation menu appears.

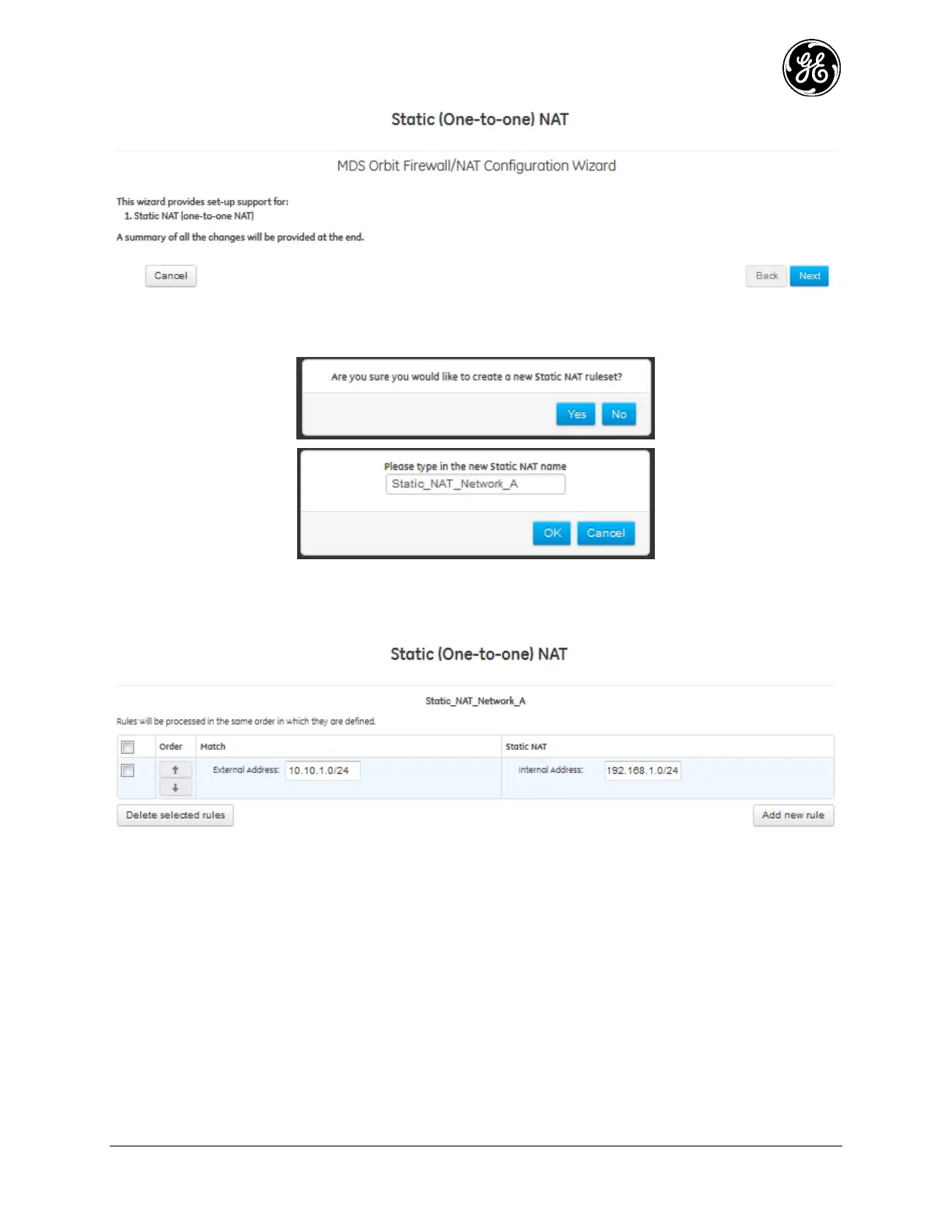

Figure 3-165 Adding a static NAT rule with the Static NAT Wizard
The following options are available within the rule creation menu.
 Order – Click the arrows to sort rules in order of priority. Rules with higher priority are applied
before rules with lower priority; rule sets containing more than one rule should be sorted accordingly.
 External Address - The external address is the address that is translated to an internal address. (This
is the rule{1}/match/dst-address in the CLI).
 Internal Address - The internal address is the address that is translated to the external address. This
is the rule{1}/static-nat/address in the CLI).
In Network A above, this is 192.168.1.0/24.
Once the rule is complete, click Next to continue. The Interface Selection screen appears.
