Oper Status - The current status of the interface - Up meaning operational / Down meaning
non-operational or disabled
Last Change - The time the interface entered its current operational state. Blank if operational
from startup.
If Index - Interface Index. Used for debugging information only
Phys Address - Generally for an 802.x interface this will be the mac address assigned to the
interface. For interfaces that do not have such an address (e.g., a serial line), this node is not
present.
Higher Layer If - A list of references to interfaces layered on top of this interface. Used for
debugging information only
Lower Layer If - A list of references to interfaces layered underneath this interface. Used for
debugging information only
Speed - An estimate of the interface's current bandwidth in bits per second. For interfaces that
do not vary in bandwidth or for those where no accurate estimation can be made, this info
should contain the nominal bandwidth. For interfaces that have no concept of bandwidth, this
info is not present.
Open up the Statistics drop-down below the General drop-down to view the statistics for the Bridge
interface:

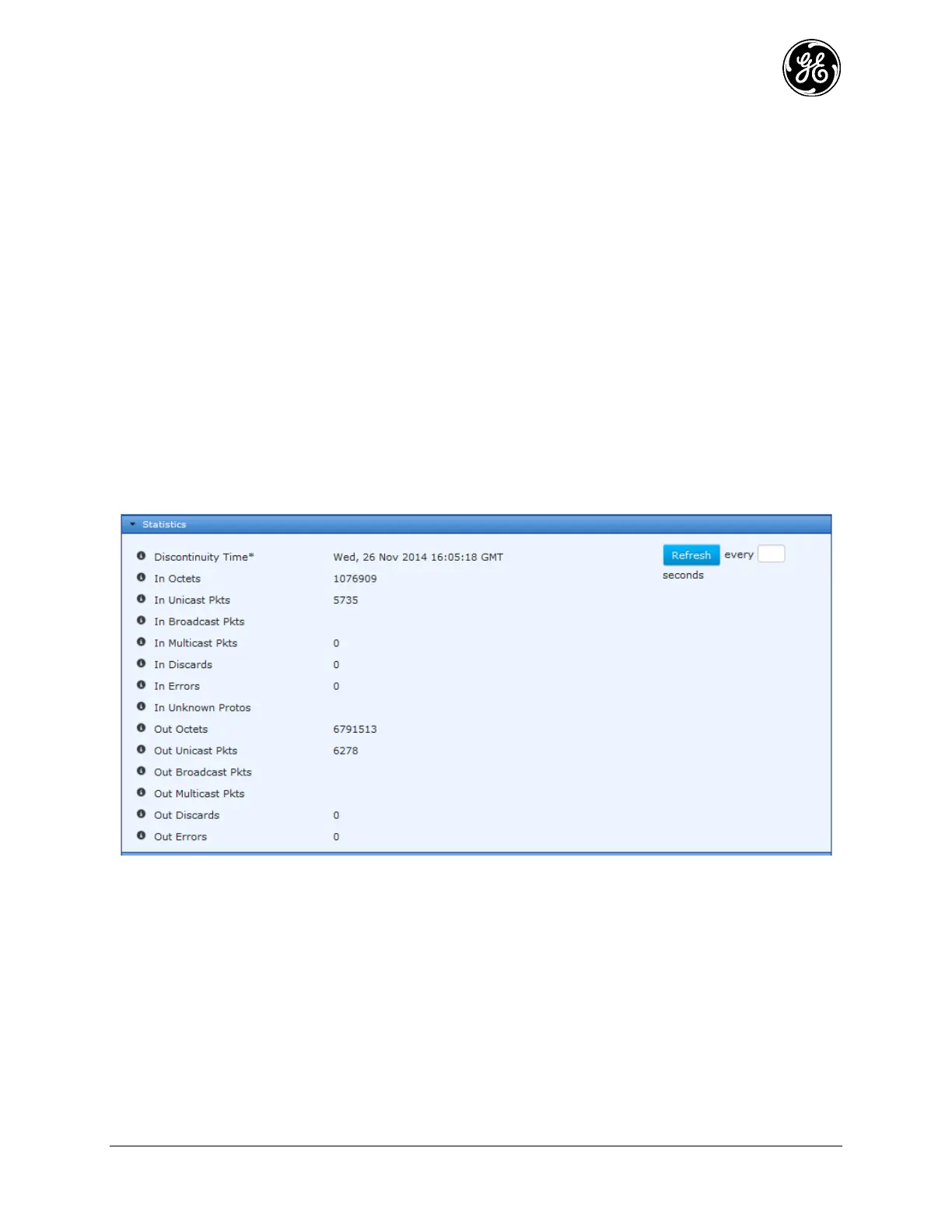

Figure 3-100. Interface Statistics Screen
Discontinuity Time - The time on the most recent occasion at which any one or more of this
interface's counters suffered a discontinuity or interruption of service.
In Octets - The total number of octets received on the interface, including framing characters.
In Unicast Pkts - The number of packets, delivered by this sub-layer to a higher (sub-)layer,
which were not addressed to a multicast or broadcast address at this sub-layer.
In Broadcast Pkts - The number of packets, delivered by this sub-layer to a higher (sub-
)layer, which were addressed to a broadcast address at this sub-layer.
In Multicast Pkts - The number of packets, delivered by this sub-layer to a higher (sub-)layer,
which were addressed to a multicast address at this sub-layer.
