GE MDS ORBIT ECR - VPN - Status; VPN - IKE Security Association Detailed Status

262 MDS Orbit MCR/ECR Technical Manual MDS 05-6632A01, Rev. F

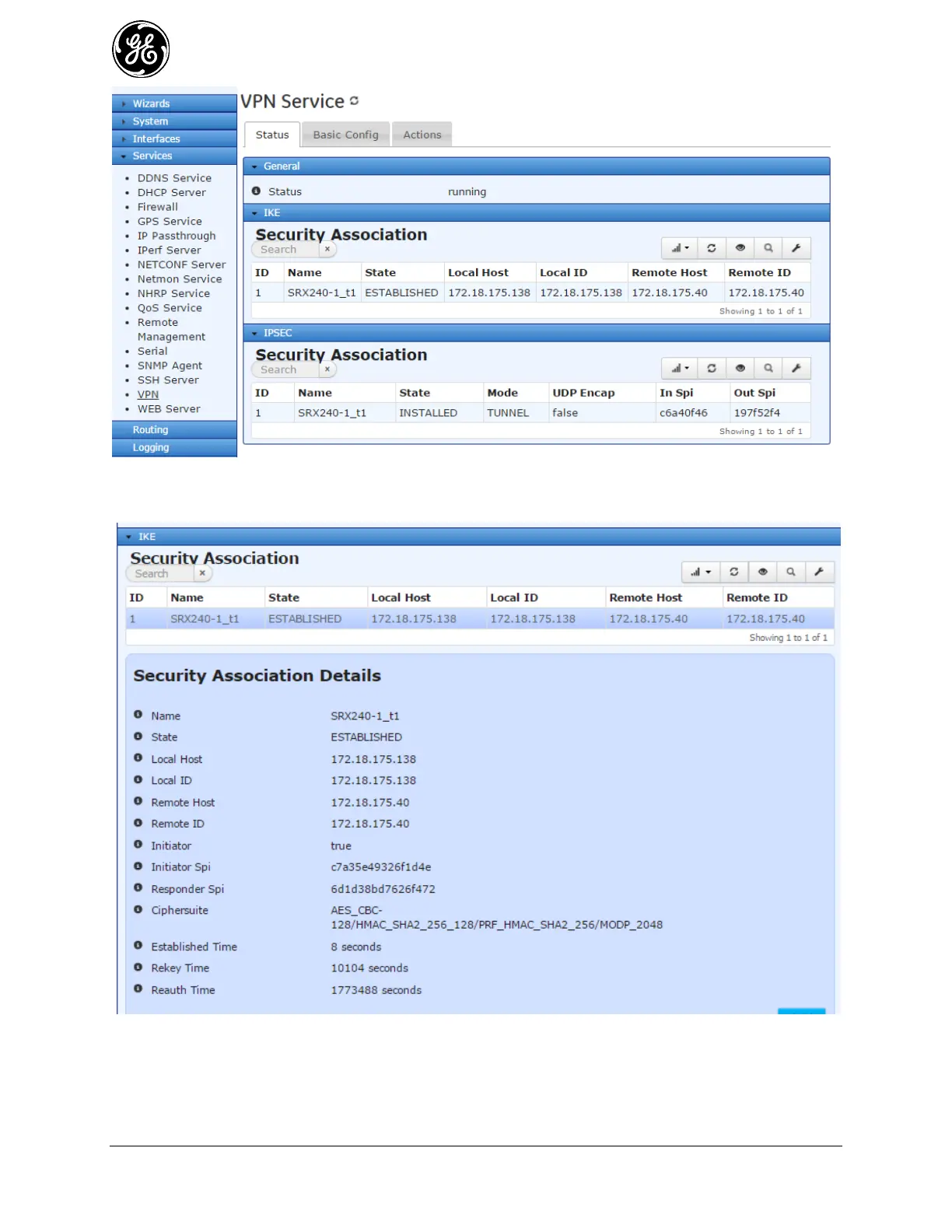

Figure 3-174. VPN - Status
Under IKE panel, click on the IKE security association row to view the detailed status.
Figure 3-175. VPN – IKE Security Association Detailed Status
Under IPsec panel, click on the IPsec security association row to view the detailed status.
