112 MDS Orbit MCR/ECR Technical Manual MDS 05-6632A01, Rev. F
 Out Broadcast Pkts - The total number of packets that higher-level protocols requested be
transmitted, and which were addressed to a broadcast address at this sub-layer, including those
that were discarded or not sent.
 Out Multicast Pkts - The total number of packets that higher-level protocols requested be
transmitted, and which were addressed to a multicast address at this sub-layer, including those
that were discarded or not sent.
 Out Discards - The number of outbound packets which were chosen to be discarded even
though no errors had been detected to prevent their being transmitted.
 Out Errors - For packet-oriented interfaces, the number of outbound packets that could not be
transmitted because of errors.
NX Status Monitoring:
Interfaces / NxRadio ---> Status / Nx Radio

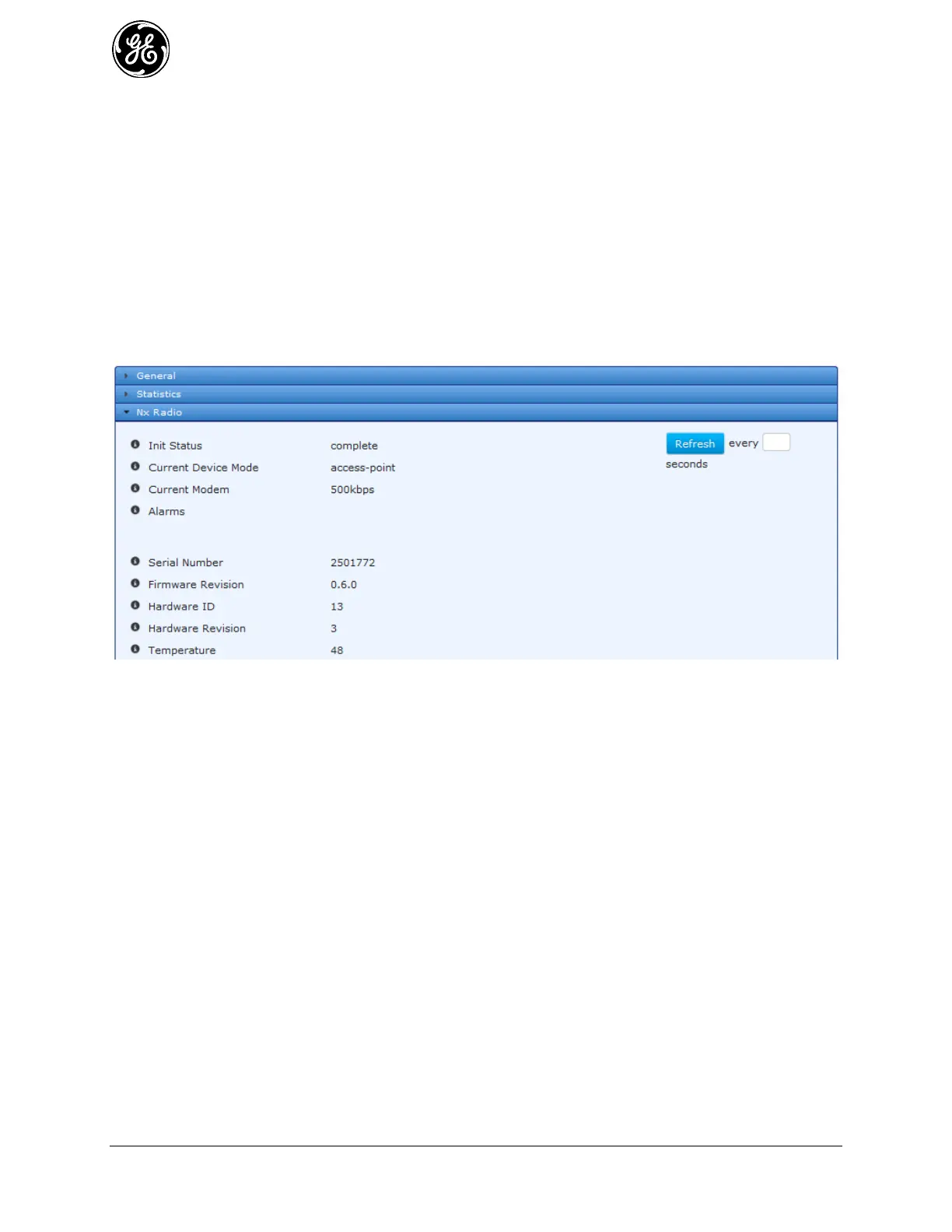

Figure 3-57. ISM 900 (NX) Status
 Init Status - State of the NIC Initialization
- Off - Not operating
- Initializing - Powering on the NIC
- Discovering - Determining the NIC address
- Reprogramming - Programming the NIC firmware
- Configuring - Configuring the NIC
- Complete - Initialization complete
 Current Device Mode – Read-only display of the active mode the NxRadio is operating.
 Current Modem - The current operating modem
- 125kbps - Theoretical throughput of 125 kbps
- 250kbps - Theoretical throughput of 250 kbps
- 500kbps - Theoretical throughput of 500 kbps (DEFAULT)
- 1000kbps - Theoretical throughput of 1000 kbps with narrow bandwidth
- 1000Wkbps - Theoretical throughput of 1000 kbps with higher sensitivity
- 1250kbps - Theoretical throughput of 1250 kbps
 Alarms - The current NIC alarms:
- frequency-not-programmed
- authorization-fault
